Schneider Electric VW3A9533 EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5
Schneider Electric VW3A9533 EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5
- MPN: VW3A9533
- PPN: SCH-VW3A9533
- UNSPSC: 39122004
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$66.18/ EA
Description

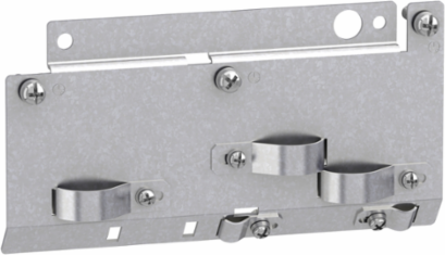

This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 5 (187mm (7in) x 93mm (3.66in). It helps organizing cable layout. It weighs 0.26kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV320D11M3C to ATV320D15M3C, ATV320D11N4C to ATV320D15N4C, and ATV320D11S6C to ATV320D15S6C speed drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under the speed drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- Plug-and-work solution.
- Easy to install.
- For simple industrial machines.
- Energy saving.
- Less timefor wiring and design.
- Different size for easy integration in all machine.
- Performance with no settings.
Specifications
Important Information Attributes
- Kit Composition
- fixing collars, EMC plate, screws
- Local Publishable Date
- 2026-01-12
- Serviceability
- No
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Package Weight Lbs
- 387.000 g
- Range Of Product
- Altivar Machine ATV320
- Sustainable Packaging
- No
- Accessory Separate Part Type2
- EMC conformity kits
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Local Data StatusPublishable
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorY
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Accessory Separate Part Category2mounting and fixing accessory
Medium DescEMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 5
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- ATV320...C variable speed drive 15 kW, 525...600 V three phase, ATV320...C variable speed drive 11 kW, 200...240 V three phase, ATV320...C variable speed drive 15 kW, 200...240 V three phase, ATV320...C variable speed drive 11 kW, 525...600 V three phase
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
General Attributes
- Range Of Product
- Altivar Machine ATV320
Specifications
- Country of Origin
- United States
