Schneider Electric VW3A9523 EMC Conformity Kit for Altivar Machine ATV320/12, Size 1, 0.17 kg

MPN: VW3A9523
PPN: SCH-VW3A9523

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$42.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

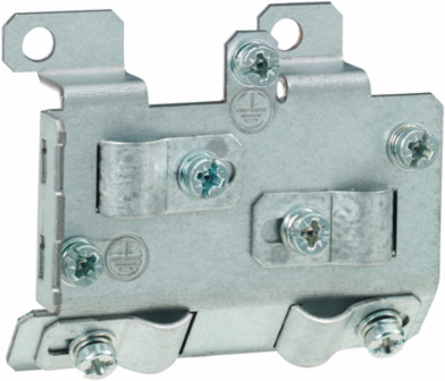

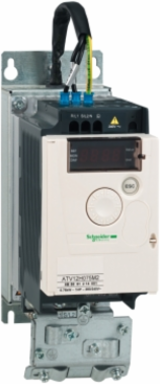

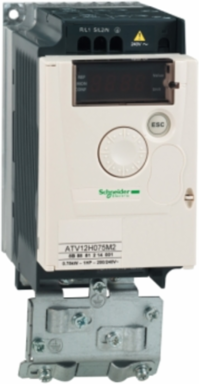

This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 1 (72x46.5mm). It helps organizing cable layout. It weighs 0.17kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV12H018F1, ATV12H037F1, ATV12P037F1, ATV12H018M2, ATV12*0**M2, and ATV12*0*M3 drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under speed drives. The ATV12 range meets basic machine requirements united with simplicity.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Kit Composition	fixing collars, EMC plate, screws
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Returnability	Yes
Accessory / Separate Part Category	mounting and fixing accessories
Accessory / Separate Part Type	EMC conformity kits
Package Weight(Lbs)	219.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
Market Segmentation	Commercial, Industrial
Range Of Product	Altivar Machine ATV320, Altivar 12
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1927
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Product Availability	Non-Stock - Not normally stocked in distribution facility
Sustainable Packaging	No
Accessory / Separate Part Destination	variable speed drive
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	7326908688

Environment Attributes Main

Product Compatibility	ATV320...C variable speed drive 0.75 kW, 200...240 V single phase, ATV320...C variable speed drive 0.55 kW, 200...240 V single phase, ATV320...C variable speed drive 0.37 kW, 200...240 V single phaseATV12H018F1, ATV12H018M2, ATV12H018M3, ATV12H037F1, ATV12H037M2, ATV12H037M3, ATV12H055M2, ATV12H075M2, ATV12H075M3, ATV12P037F1, ATV12P037M2, ATV12P037M3, ATV12P055M2, ATV12P075M2, ATV12P075M3, ATV320...C variable speed drive 0.18 kW, 200...240 V three phase, ATV320...C variable speed drive 0.37 kW, 200...240 V three phase, ATV320...C variable speed drive 0.55 kW, 200...240 V three phase, ATV320...C variable speed drive 0.75 kW, 200...240 V three phase, ATV320...C variable speed drive 0.18 kW, 200...240 V single phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
