Square D

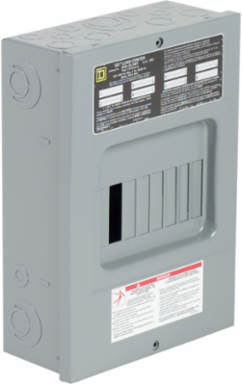

Square D QO612L100TS Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, gnd bar, surface cover, CSA

Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, gnd bar, surface cover, CSA
  • MPN: QO612L100TS
  • UPC: 785901805175
  • PPN: SCH-QO612L100TS

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$241.40/ EA

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, surface cover, and is CSA rated.

Specifications

Environment

Product Certifications
cULus
Ambient Air Temperature For Operation
-5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2212002
Eu Rohs Directive
Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Height
319 mm
Number Of Tandem Circuit Breakers
6
[Ue] Rated Operational Voltage
120/240 V AC
Surface Finish
baked enamel grey
Enclosure Material
welded sheet steel
Width
226 mm
Electrical Connection
lugs
Number Of Spaces
6
Device Composition
grounding bar (factory installed)
Box Number
4
Short-Circuit Current10 kA
Tightening Torquemain lugs 50 lb.in, AWG 8, aluminum/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminum/copper
Materialtin plated aluminum: busbar
[In] Rated Current100 A
Awg GaugeAWG 4...AWG 1 aluminum/copper
Wiring Configuration3-wire
Number Of Circuits12
Loadcentre TypeFixed Mains (lugs)
Network Number Of Phases1 phase

Specifications

Cover Type
surface cover
Product Or Component Type
Loadcentre
Range Of ProductQO

Downloads
