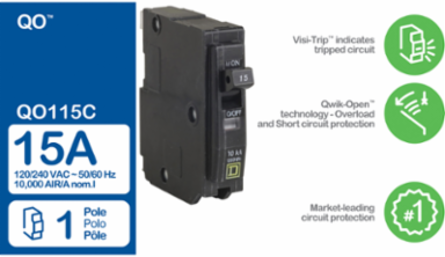

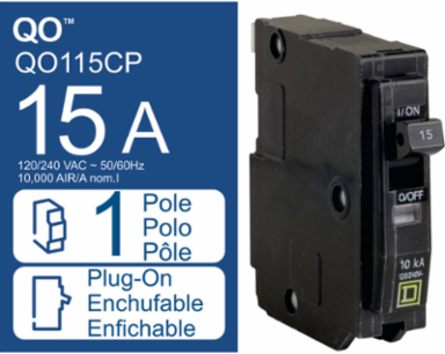

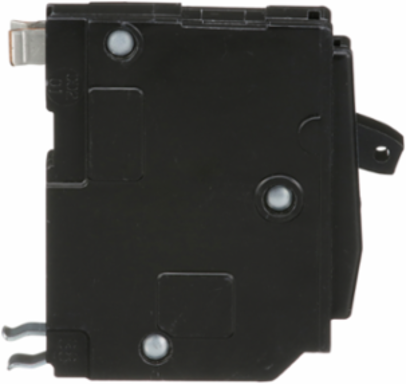

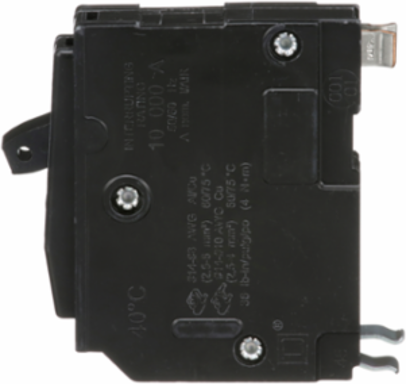

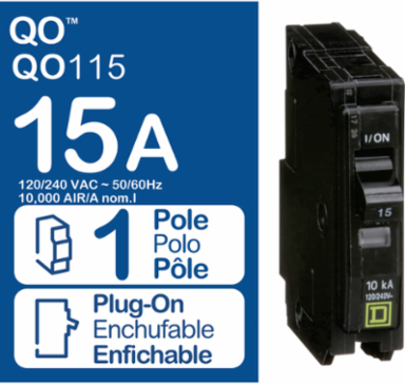

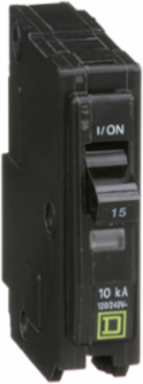

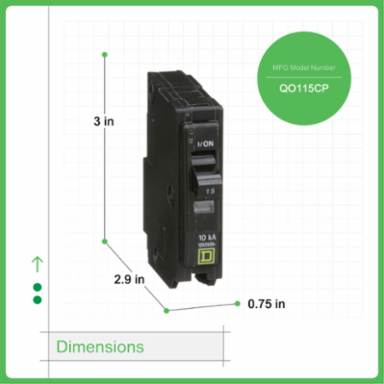

Schneider Electric QO115 QO Miniature Circuit Breaker 15A 1 Pole Plug-In Mount 10kA

MPN: QO115
UPC: 785901400066
PPN: SCH-QO115

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$22.43

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Square D QO115 15A 1-Pole Circuit Breaker offers dependable circuit protection with a compact plug-on design. Rated for 120/240 V single-phase systems and featuring a 10 kA interrupting capacity, this breaker is built for safety, reliability, and easy installation in Square D QO load centers. With its VISI-TRIPTM indicator and UL/CSA certifications, it s a trusted choice for professional electricians and homeowners alike.

Features

Designed exclusively for Square D QO load centres, QO enclosures, and CSED devices. Note: This plug-on breaker is not compatible with Square D Homeline (CHOM) panels.
120/240 VAC Voltage Rating: Ideal for single-phase systems, this Square D QO115 breaker supports standard 120 V or 240 V installations.
Plug-On Mounting Design: Installs quickly and securely into Square D QO series load centers no extra hardware required.
High 10 kA Interrupting Rating: Engineered to safely interrupt fault currents up to 10,000 amps for enhanced electrical safety.
VISI-TRIPTM Indicator: Features a visible trip window that clearly shows when the breaker has been tripped for fast circuit diagnosis.
UL Listed and CSA Certified: Ensures compliance with leading North American safety and performance standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India, United States

Depth	74 mm

Complementary Attributes

Rated Current	15 A

Line Rated Current	15 A

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]	0.0175572516, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0000339913, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	17 kg CO2 eq., 17.3042434783
Local Publishable Date	2026-04-14
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Awg Gauge	14 AWG...8 AWG copper or aluminium
Circuit Breaker Type	standard
Energy Efficiency Optimized	False
Number Of Poles	1P
Poles Description	1P
Product Or Component Type	miniature circuit-breaker
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	18 kg CO2 eq.
Pep Code	ENVPEP2111016EN
Pep Verification Date	2021-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Energy model used: Mexico
Energy Model - Use [B6]	Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal	76 mm
Halogen-free Status	Halogen free product
Package Weight(Lbs)	123 g
Warranty (In Months)	18

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
[Ue] Rated Operational Voltage	120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0248760731
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.8 kg CO2 eq., 0.7951343373
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Circuit Breaker Application	HACR and Switching Duty rated
Electrical Connection	pressure plate
Mounting Mode	plug-in
Number Of Spaces Required	1
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Software Version	EIME v5.9.1
Tightening Torque	4-4 N.m
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	24.8784
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Width Nominal	19 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200040

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Halogene Performance	Halogen free product
Toxic Heavy Metal Free	Yes
Carbon Footprint	18.1418451316
Environmental Disclosure	ENVPEP2111016EN
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2111016EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2021-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
