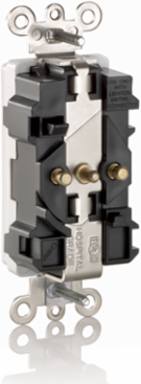

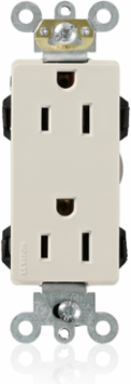

Leviton M1626-T 15 Amp Lev-Lok Decora Plus Duplex Receptacle, Heavy-Duty, NEMA 5-15R, Light Almond
- MPN: M1626-T
- UPC: 078477364079
- PPN: LEV-M1626-T
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lev-Lok Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Features

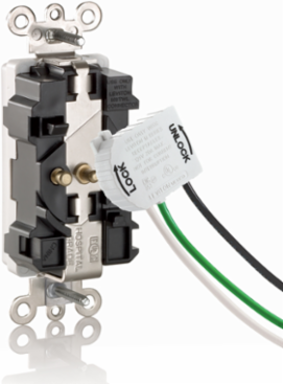

- The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- cULus
- Listed
NEMAWD-1 & WD-6
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Ground Clips
- Brass
- Locking Pins
- Solid Brass
- Mounting Strap
- Galvanized Steel with Riveted Ground Contacts
Cover MaterialNylon
Line Contacts0.040” Thick Solid Brass
Mounting ScrewsTriple Combination Head, Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Product Features
- Brand
- Lev-Lok Decora Plus
- Device Type
- Duplex Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
ColorLight Almond
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
