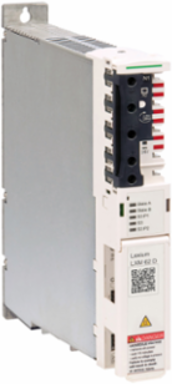

Schneider Electric LXM62DD27D21000 Lexium 62 Double Drive 27 A, 4.3 kW, IP20, 3 kg, Accessory Kit Included
- MPN: LXM62DD27D21000
- PPN: SCH-LXM62DD27D21000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Lexium 62 & Motors range, an offer of servo drives. The double drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a double drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets EN 62061, EN 61800-5-1, EN 61800-3, CSA C22.2 No 14, IEC 61508, UL 508C and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth270 mm
Communications & Management Attributes
- Communication Interface
- SERCOS III, Integrated
Complementary Attributes
- Line Rated Current
- 9.0 A
- Maximum Current Irms
- 27.0 A
- Minimum Ambient Air Temperature For Operation
- 5.0 °C
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Operational Altitude3000.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- terminal 0.2...15 mm², AWG 24...AWG 16 CN4), terminal 0.5...16 mm², AWG 20...AWG 6 CN5), terminal 0.75...16 mm², AWG 18...AWG 6 CN6), terminal 0.2...6 mm², AWG 24...AWG 10 CN7)
- Supply Voltage
- 208-360 V three phase, 380-480 V three phase
- [Us] Rated Supply Voltage
- 400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 230 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 7 kg CO2 eq., 6.585296322048595
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 589 kg CO2 eq., 588.7866369961065
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Continuous Power
- 4.3 kW
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Environmental Characteristic
- 3K3 conforming to IEC 60721-3-3
- Minimum Ambient Air Temperature For Operation
- 5.0 °C
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PacDrive 3
- Safety Function
- STO (safe torque off)
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Tightening Torque
- CN1 2.5-2.5 N.m
- Vibration Resistance
- 10 m/s² conforming to IEC 60721-3-3
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 8339.52
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 310 mm
- Maximum [In] Rated Current
- 9.0 A
- Package Weight(Lbs)
- 3.994 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Certificate AgencyCE, EAC, TÜV, CSA, UL
Carbon Footprint Of The Distribution Phase [A4]0.2894339648903443, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.671052427874889, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]4 042 kg CO2 eq., 4041.938244045323
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1406012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Component NameLXM62
Derating Altitude Scale80.0 m
Derating Temperature Scale70.0 °C
Device Short NameLXM 62
Maximum Operational Altitude3000.0 m
Nominal Power4.3 kW
Phasethree phase
Product Or Component Typedouble drive
ReturnabilityYes
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Total Lifecycle Carbon Footprint4 639 kg CO2 eq.
Pep CodeENVPEP1406012EN
Pep Verification Date2025-08-28
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity origin
Recyclability Potential, In %57
Width Nominal44.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- servo motor SHS, servo motor SH3 100 mm, 3 optimized in terms of torque and speed, servo motor SH3 100 mm, 4 optimized in terms of torque and speed, servo motor SH3 140 mm, 1 optimized in terms of torque and speed, servo motor MH3 100 mm, 2 optimized in terms of torque and speed
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Disclosure
- ENVPEP1406012EN
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-85 %
- Pep Verification Date
- 2025-08-28
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Carbon Footprint4639.270663756243
Circularity ProfileENVEOLI1406012EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
