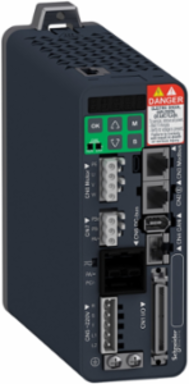

Schneider Electric LXM28EU02M3X Lexium28 EtherCAT drive, 200W, 1/3 phase 230V
Schneider Electric LXM28EU02M3X Lexium28 EtherCAT drive, 200W, 1/3 phase 230V
- MPN: LXM28EU02M3X
- PPN: SCH-LXM28EU02M3X
- UNSPSC: 39122003
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1769.75/ EA
Description
Lexium28 EtherCAT drive, 200W, 1/3 phase 230V
Specifications
Communications & Management Attributes
- Communication Interface
- EtherCAT, Integrated
Conformance Attributes
- Product Certifications
- CE, cULus
StandardsIEC 61800-5-1
Complementary Attributes
- Line Rated Current
- 1.5 A
- Maximum Leakage Current
- 1.3 mA
Maximum Current IRMS4.5 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 0.82...1 mm², AWG 18 L1-L2), spring terminal 0.82...1 mm², AWG 18 R, S, T), spring terminal 0.82...1 mm², AWG 18 U, V, W, PE), spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
- Line Current
- 2.4 A 226.8 % 220 V, single phase, 2.4 A 200.7 % 220 V, three phase
- Network Number Of Phases
- 3, 1
- Phase
- three phase, single phase
- Safety Level
- SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
- Supply Voltage
- 200-240 V single phase, 200-240 V three phase
- Supply Voltage Limits
- 200-255 V three phase, 170-255 V single phase
- Carbon Footprint Of The Distribution Phase A4
- 0.1664361486, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0124955676, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 697 kg CO2 eq., 696.9347942537
- Local Data Status
- Publishable
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Connector Type
- RJ45 CN4)EtherCAT
- Control Signal Type
- servo motor encoder feedback CN2
- Electrical Isolation
- between power and control
- EMC Filter
- without EMC filter
- Format Of The Drive
- compact housing
- Network Frequency
- 47.5...63 Hz
- Operating Position
- vertical
- Package Weight Lbs
- 1.289 kg
- Product Or Component Type
- motion servo drive
- Returnability
- No
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Supply Frequency
- 50/60 Hz - 5...5 %
- Switching Frequency
- 16 kHz
- Transmission Rate
- 100 Mbit/s EtherCAT
- Type Of Cooling
- natural convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- Lexium28 EtherCAT drive, 200W, 1/3 phase 230V
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unité (unit)
- Energy Model Installation A5 2
- Electricity mix; AC; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; < 1kV; EU-27
- Maximum In Rated Current5
- 1.5 A
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
EMC Filter Compatibilitytype 022, type 020
MarkingCE, cULus
Nominal Voltage220 V single phase, 220 V three phase
Protection Typeagainst reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
Status Led1 LED (Red) DC bus energized, 1 LED (multi-colour) N.RUN, 1 LED (multi-colour) N.ERR, 2 LEDs (Yellow) Link (Link Status), 2 LEDs (Yellow) activity
Supply Voltage Descriptionthree phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz
Us Rated Supply Voltage2200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
Carbon Footprint Of The End Of Life Phase C1 To C40.6 kg CO2 eq., 0.5897391892
Carbon Footprint Of The Manufacturing Phase A1 To A322 kg CO2 eq., 21.9413310811
Us Rated Supply Voltage5200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase
Local Publishable Date2026-01-12
ServiceabilityYes
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Continuous Power200 W 220 V
Device Short NameLXM28E
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Field Weakeningfalse
Method Of Accessslave
Nominal Power0.2 kW 220 V 16 kHz
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Safety FunctionSTO (safe torque off), Integrated
Signalling Functionservo status and fault codes five 7-segment display units
Sustainable PackagingNo
Total Lifecycle Carbon Footprint720 kg CO2 eq.
Type Of Cableshielded motor cable 0-55 °C) copper
Vibration Resistance3M4 3 mm 9-200 Hz)IEC 60721-3-3
Maximum In Rated Current21.5 A
Stocking FlagY
Pep CodeENVPEP1409001EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo control AC-servo motors BCH2 100% of the time for 10 years
Energy Model Manufacturing A1 A3 2Energy model used: China
Energy Model Use B6 2Electricity mix; AC; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-55 °C
- Circularity Profile
- ENVEOLI1409001EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1409001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint719.6447962402
Ambient Air Temperature For Storage-25-65 °C
Environmental DisclosureENVPEP1409001EN
Packaging Made With Recycled CardboardNo
Product Compatibilityservo motor BCH2 60 mm, 1 200 W
Relative Humidity5-95 % without condensation
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
Output Attributes
- Discrete Output Number
- 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Continuous Output Current
- 1.5 A 16 kHz
- Discrete Output Voltage
- 12...24 V DC
Output Current 3s Peak4.5 A 220 V, 4.5 A
Discrete Output Logicpositive or negative CN1)
Output Voltage<= power supply voltage
Surge Protection And Filtering Attributes
- EMC Filter Compatibility
- type 022, type 020
EMC Filterwithout EMC filter
Input Attributes
- Discrete Input Number
- 8 programmable CN1), 2 fast capture CN1), 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Logicpositive or negative CN1)
Specifications
- Depth
- 146 mm
