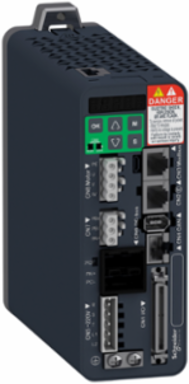

Schneider Electric LXM28EU07M3X Lexium 28 Motion Servo Drive 750W 200-240V EtherCAT
- MPN: LXM28EU07M3X
- PPN: SCH-LXM28EU07M3X
CAD
$1883.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 28 Motion Servo Drive from Schneider Electric is a high-performance solution designed to enhance automation and control in various applications. Able to handle up to 750W of power and compatible with a 200-240V supply, this servo drive excels in delivering precise motion control through its integration with EtherCAT technology. Its robust features make it an ideal choice for professionals seeking reliable performance and versatility in motion control systems, ensuring seamless operation in complex industrial environments. With Schneider Electric’s commitment to innovation, this servo drive stands out as a vital component for optimizing automation processes.
Documentation & Downloads
Specifications
Additional
- Power
- 750 W 220 V 16 kHz
- Network Number Of Phases
- single or three phases
- Output Current 3S Peak
- 13.5 A 220 V
- Overvoltage Category
- III
- Output Voltage
- <= power supply voltage
- Discrete Input Number
- 8 programmable, 2 fast capture, 1 safety function STO
- Discrete Input Voltage
- 24 V DC logic
- Safety Function
- STO (safe torque off), integrated
- Communication Interface
- EtherCAT, integrated
- Transmission Rate
- 100 Mbit/s EtherCAT
- Type Of Cooling
- fan
- Product Compatibility
- servo motor BCH2 130 mm 1500 W, servo motor 80 mm 2750 W, servo motor 130 mm 1600 W
- Height
- 150 mm (5.91 in)
- Net Weight
- 1 kg (2.20 lb)
- Standards
- IEC 61800-5-1
- IP Degree Of Protection
- IP20
- Shock Resistance
- 10 gn IEC 60721-3-3
- Ambient Air Temperature For Operation
- 0-55 °C (32-131 °F)
- Operating Altitude
- <= 1000 m without derating; > 1000...2000 m 1% per 100 m
- RoHS Compliance
- Pro-active compliance, mercury free, PVC free
Voltage200...240 V -10...15% three phase or 200...240 V -20...15% single phase
Continuous Output Current4.5 A 16 kHz
Switching Frequency16 kHz
Maximum Leakage Current1.3 mA
Electrical Connectionspring terminal 0.82...1 mm², AWG 18
Discrete Output Number5 logic output, 1 pulse train output (PTO)
Discrete Output Voltage12...24 V DC
Safety LevelSIL 2 IEC 61800-5-2, SIL 2 IEC 61508-1, PL d/category 3 ISO 13849-1
Connector TypeRJ45 EtherCAT
Physical InterfaceRS485 Modbus Serial line slave
Operating Positionvertical
Width55 mm (2.17 in)
Depth146 mm (5.75 in)
Electromagnetic Compatibilityconducted emission level 3 category C3 IEC 61800-3
Product CertificationsCSA, CE, cULus
Vibration Resistance3M4 3 mm 9-200 Hz IEC 60721-3-3
Relative Humidity5-95% without condensation
Ambient Air Temperature For Storage-25-65 °C (-13-149 °F)
Country Of OriginCN
