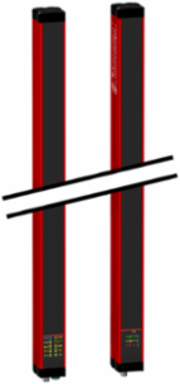

Telemecanique Sensors XUSL4MB40H211N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware config T4 R40 H=211 cm D4 12 m
Telemecanique Sensors XUSL4MB40H211N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware config T4 R40 H=211 cm D4 12 m
- MPN: XUSL4MB40H211N
- PPN: TES-XUSL4MB40H211N
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3122.67/ EA
Specifications
Environment
- Product Certifications
- TÜV || CE || cULus
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/655/EEC - work equipment || 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 0-95 % without condensation
- Safety Level
- type 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Ambient Air Temperature For Operation-30-55 °C || -22-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Ambient Air Temperature For Storage-30-70 °C || -22-158 °F
Safety Reliability DataPFHd = 2.47E-8 1/h IEC 61508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Circularity ProfileENVEOLI1406015EN
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 2 female connectors M12 5 pins transmitter || 1 male connector M12 12 pins receiver || 3 female connectors M12 5 pins receiver
- Offer Type
- standard distance
- Emission
- IR LED 950 nm
- Maximum Voltage Drop
- <0.5 V
- Supply
- power supply IEC 61496-1 || power supply IEC 60204-1
- Local Signalling
- 1 multi-colour LED transmitter || 10 dual colour LEDs receiver
- Housing Colour
- red RAL 3000
- [Ie] Rated Operational Current
- 2 A
- Output Voltage
- 24 V
- Output Circuit Type
- DC
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %
Current Consumption35 mA no-load transmitter || 85 mA no-load receiver || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Response Time19.5 ms
Output Current Limits0.4 A safety outputs OSSD
Net Weight10.2 kg
Function Availabletest || muting || LED display of operating modes and faults
Materialaluminium casing || polycarbonate front panel || polypropylene end caps
Kit Compositionadjustable mounting bracket(s) || 1 receiver || 1 transmitter || 1 user guide with certificate of conformity on CD-ROM
Detection Systemtransmitter-receiver system
[Eaa] Effective Aperture Angle2.5 ° at 3 m
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Minimum Object Diameter For Detection
- 40 mm
- Control Type
- selected by wiring
- Distance Between Axis
- 40 mm
- [Sn] Nominal Sensing Distance
- 0-12 m by cabling || 0-4 m by cabling
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Height Protected2110 mm
Product Specific Applicationfor hand protection
Number Of Beams71
Device Short NameXUSL4M
