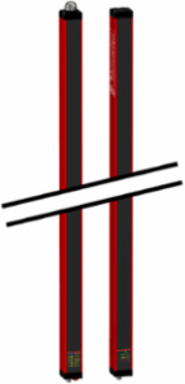

Telemecanique Sensors XUSL4MA40H166N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 R40 H166cm D4 12 m
Telemecanique Sensors XUSL4MA40H166N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 R40 H166cm D4 12 m
- MPN: XUSL4MA40H166N
- PPN: TES-XUSL4MA40H166N
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3292.32/ EA
Specifications
Environment
- Product Certifications
- TÜV || CE || cULus
- Directives
- 89/655/EEC - work equipment || 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 0-95 % without condensation
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Safety Level
- type 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Ambient Air Temperature For Operation-30-55 °C || -22-131 °F
Ambient Air Temperature For Storage-30-70 °C || -22-158 °F
Safety Reliability DataPFHd = 2.21E-8 1/h IEC 61508
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1406015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1406015EN
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 2 female connectors M12 5 pins transmitter || 1 male connector M12 12 pins receiver || 3 female connectors M12 5 pins receiver
- Current Consumption
- 35 mA no-load transmitter || 85 mA no-load receiver || 900 mA with maximum load receiver
- Offer Type
- standard distance
- Material
- aluminium casing || polycarbonate front panel || polypropylene end caps
- Kit Composition
- adjustable mounting bracket(s) || 1 receiver || 1 transmitter || 1 user guide with certificate of conformity on CD-ROM
- Output Voltage
- 24 V
- Response Time
- 16.5 ms
- Output Current Limits
- 0.4 A safety outputs OSSD
- Output Circuit Type
- DC
- Net Weight
- 8.2 kg
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %
Function Availabletest || muting || LED display of operating modes and faults
Housing Colourred RAL 3000
Fixing Modeby fixing brackets
[Ie] Rated Operational Current2 A
EmissionIR LED 950 nm
Detection Systemtransmitter-receiver system
Maximum Voltage Drop<0.5 V
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
[Eaa] Effective Aperture Angle2.5 ° at 3 m
Local Signalling1 multi-colour LED transmitter || 10 dual colour LEDs receiver
Specifications
- Minimum Object Diameter For Detection
- 40 mm
- Height Protected
- 1660 mm
- Product Specific Application
- for hand protection
- Number Of Beams
- 56
- [Sn] Nominal Sensing Distance
- 0-12 m by cabling || 0-4 m by cabling
- Device Short Name
- XUSL4M
Range Of ProductTelemecanique Safety light curtains XUSL
Control Typeselected by wiring
Distance Between Axis40 mm
Product Or Component Typesafety light curtain type 4
Output Type2 safety outputs OSSD solid-state PNP arc suppression)
Type Of Startmanual || automatic
