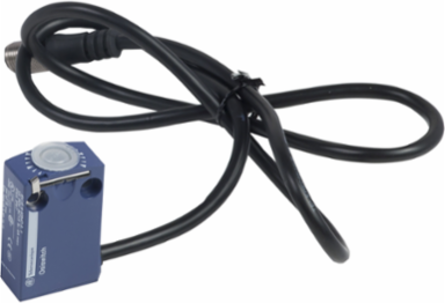

Telemecanique Sensors ZCMD21L1R12SCU Limit switch body, Limit switches XC Standard, metal, 1 NO and 1 nc, zcmd
- MPN: ZCMD21L1R12SCU
- PPN: TES-ZCMD21L1R12SCU
- UNSPSC: 39122213
CAD
$221.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The ZCMD limit switch body is a part of the Telemecanique XCS series of limit switches. It is a Zamak plug-in body with one normally closed and one normally open snap action contacts. It has a plug-in cable electrical connection. It is furnished with pre-cabled electrical connection. This fixed limit switch body is made of Zamak. Its dimensions are 30mm (width) x 16mm (depth) x 50mm (height). It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with the XCMD limit switches. The associated connection components are ZCMC21L1, ZCMC21E2, ZCMC21E5, ZCMC21E1, ZCMC21E3, ZCMC21E7 and ZCMC21E10. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- snap action
- Body Material
- zamak
- Design
- miniature
- Number Of Poles
- 2
Contacts Type And Composition1 NC + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE02 || ZCE01 || ZCE06 || ZCE05 || ZCE08 || ZCE09 || ZCE07
Product Or Component Typelimit switch body
Device Short NameZCMD
Complementary
- Height
- 50-50 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 30 mm
- Depth
- 16 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Minimum Actuation Speed0.01 m/min
Electrical Connectionplug-in without pre-cabled connection
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCMC21L1 || ZCMC21E2 || ZCMC21E5 || ZCMC21E1 || ZCMC21E3 || ZCMC21E7 || ZCMC21E10
Product CompatibilityXCMD
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
