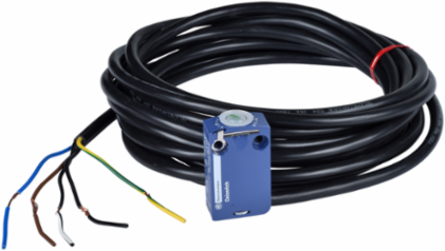

Telemecanique Sensors ZCMD21L5 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, 5 m
- MPN: ZCMD21L5
- PPN: TES-ZCMD21L5
- UNSPSC: 39122213
CAD
$168.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled (5 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Product Or Component Type | limit switch body |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | zamak |
| Number Of Poles | 2 |
| Associated Head | ZCE01 || ZCE29 || ZCE10 || ZCEG1 || ZCE66 || ZCE21 || ZCE09 || ZCEF2 || ZCE06 || ZCE62 || ZCE64 || ZCE65 || ZCE27 || ZCE28 || ZCE11 || ZCE14 || ZCEF0 || ZCE13 || ZCE02 || ZCE63 || ZCE08 || ZCE07 || ZCE67 || ZCE24 |
|---|---|
| Design | miniature |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | ZCMD |
Complementary
| Height | 50-50 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/min |
| Contacts Material | silver plated contacts |
| Net Weight | 0.065 kg |
| Electrical Durability | 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Wire Insulation Material | PvR |
| Width | 30 mm |
| Product Compatibility | XCMD |
| Short-Circuit Protection | 6 A cartridge fuse gG |
|---|---|
| Electrical Connection | removable cable |
| Cable Length | 5 m |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14 |
| Contacts Insulation Form | Zb |
| Cable Composition | 5 x 0.75 mm² |
| Depth | 16 mm |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI110612EN |
