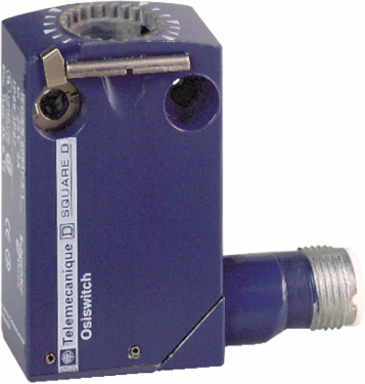

Telemecanique Sensors ZCMD29C12 Limit switch body, Limit switches XC Standard, ZCMD, 2NC, silver, snap action, connection, M12

MPN: ZCMD29C12
PPN: TES-ZCMD29C12
UNSPSC: 39122213

$182.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the XC Standard range, an offer of limit switches. This is a limit switch fixed body. It has 2 normally closed, snap action contacts with positive opening operation. It has 2 poles with silver plated contacts. It is furnished with 5-pin M12 male connector for electrical connection. The limit switch body is made of Zamak. Its dimensions are 30mm (Width) x 16mm (Depth) x 50mm (Height) and weighs 0.065kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCMD series limit switches and ZCE heads. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.

Documentation & Downloads

Specifications

Key Specifications

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Contact Operation	snap action
Body Material	zamak
Design	miniature
Number Of Poles	2

Contacts Type And Composition	2 NC
Body Type	fixed
Associated Head	ZCE01 \|\| ZCE27 \|\| ZCE11 \|\| ZCE66 \|\| ZCEG1 \|\| ZCEF2 \|\| ZCE65 \|\| ZCE28 \|\| ZCE02 \|\| ZCEF0 \|\| ZCE62 \|\| ZCE24 \|\| ZCE09 \|\| ZCE13 \|\| ZCE63 \|\| ZCE29 \|\| ZCE67 \|\| ZCE10 \|\| ZCE08 \|\| ZCE07 \|\| ZCE14 \|\| ZCE06 \|\| ZCE21 \|\| ZCE64
Product Or Component Type	limit switch body
Device Short Name	ZCMD

Complementary

Height	50-50 mm
Short-Circuit Protection	4 A cartridge fuse gG
Positive Opening	with
Contacts Insulation Form	Zb
Electrical Connection	male connector M12, 5 pins
[Ithe] Conventional Enclosed Thermal Current	4 A
Depth	16 mm
Net Weight	0.065 kg
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

Electrical Durability	5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	60 V 3)IEC 60947-5-1
Minimum Actuation Speed	0.01 m/min
[Ie] Rated Operational Current	0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A \|\| 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A
Contacts Material	silver plated contacts
Width	30 mm
Product Compatibility	XCMD
[Uimp] Rated Impulse Withstand Voltage	0.8 kV IEC 60664 \|\| 0.8 kV IEC 60947-1

Environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI110612EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
