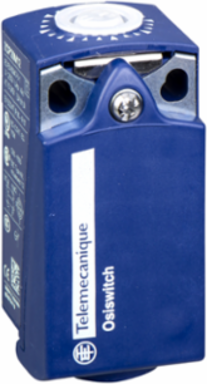

Telemecanique Sensors ZCP29M12 Limit switch body, Limit switches XC Standard, ZCP, compact, 2NC, snap action, M12 4P
- MPN: ZCP29M12
- PPN: TES-ZCP29M12
- UNSPSC: 39122213
CAD
$75.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This fixed body, is part of the XCKP offer, a range of compact design, plastic, limit switches with one M12 connector. Contacts: 2NC, snap action. A wide range of heads/operators,is compatible with this body.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch body
- Series Name
- Universal
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Associated HeadZCE13 || ZCE09 || ZCE62 || ZCEH0 || ZCE10 || ZCE11 || ZCE27 || ZCE28 || ZCE24 || ZCE63 || ZCE64 || ZCE65 || ZCE21 || ZCE14 || ZCEH2 || ZCE06 || ZCE05 || ZCE29 || ZCE67 || ZCE02 || ZCE08 || ZCE66 || ZCE07
Designcompact
Contacts Type And Composition2 NC
Contact Operationsnap action
Device Short NameZCP
Complementary
- Height
- 65-65 mm
- Minimum Actuation Speed
- 0.01 m/min
- Contacts Material
- silver plated contacts
- Net Weight
- 0.07 kg
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13 EN/IEC 60947-5-1 appendix A
- Width
- 31 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Short-Circuit Protection10 A cartridge fuse gG
Electrical Connectionmale connector M12, 4 pins
[Ithe] Conventional Enclosed Thermal Current3 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508
Contacts Insulation FormZb
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A
Depth30 mm
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Product CompatibilityXCKD
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
