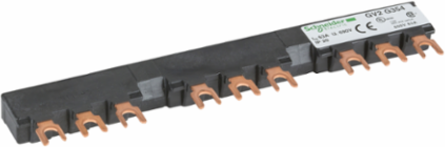

Schneider Electric GV2G354 Linergy FT Comb Busbar, 63A, 3 Tap-Offs, 54mm Pitch, 152mm Length
- MPN: GV2G354
- PPN: SCH-GV2G354
CAD
$47.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 3 tap-off outlets for the paralleling of 3 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
Features
- Engineered with a robust 63-Amp current capacity at 690V, this parallel busbar handles high-current distribution effortlessly. It allows industrial panel builders to feed up to three motor starters from a single power source, reducing heat buildup inside control cabinets and minimizing dangerous voltage drops across your automation line.
- Featuring an exact 54mm pitch spacing between terminal tap-offs, this busbar aligns with the exact physical footprint of Schneider TeSys Deca/GV2 manual motor starters and protectors. This eliminates custom wire cutting, stripping, and bending, ensuring a clean, uniform layout that slides directly into terminal clamps for rapid assembly.
- Designed with 3 distribution tap-offs across a compact 152mm length, this busbar combines three individual supply lines into one rigid, solid copper assembly. This layout saves valuable DIN rail space, significantly reducing enclosure sizes and cutting down layout engineering time for complex multi-motor control panels.
- Part of the Schneider Linergy FT ecosystem, this busbar features fully insulated, touch-safe housing to shield personnel from accidental contact with live components. It fits cleanly beneath optional protective end caps, helping your completed control assemblies comply with rigorous UL, CSA, and IEC finger-safe specifications during routine maintenance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United Kingdom, Mexico, Romania, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Connection Pitch | 54 mm, 54 mm |
| Certificate Agency | CE, cULus |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | GV2G |
| Fixing Mode | terminals |
| Number Of Tap Offs | 3 |
| Product Name | FT |
| Range | Linergy |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2207006EN |
| [Ith] Conventional Free Air Thermal Current | 63 A |
| Accessory / Separate Part Category | connection accessory |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | TeSys GV2, TeSys fuse-disconnector, TeSys U, TeSys K, TeSys Deca |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2207006 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | GV2G |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | comb busbar |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 152 mm |
| [Ui] Rated Insulation Voltage | 690 V |
| Number Of Tap-offs | 3 |
| Package Weight(Lbs) | 66.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2207006EN |
General Attributes
| Range Of Product | TeSys GV2, TeSys fuse-disconnector, TeSys U, TeSys K, TeSys Deca |
|---|
| Product Or Component Type | comb busbar |
|---|
ETIM
| ETIM 8 | EC000215 |
|---|
| ETIM 9 | EC000215 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
