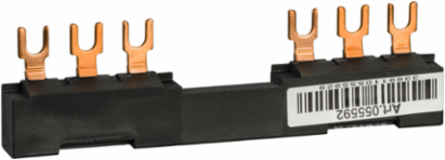

Linergy FT Comb Busbar 63A 3P 2 Tap-Offs 72 mm Pitch

Documentation & Downloads

Schneider Electric GV2G272 Linergy FT Comb Busbar 63A 3P 2 Tap-Offs 72 mm Pitch

MPN: GV2G272
PPN: SCH-GV2G272

CAD

$40.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Connection Pitch: 72 mm

Accessory / Separate Part Category: connection accessory

Number Of Tap-Offs: 2

[Ith] Conventional Free Air Thermal Current: 63 A

Device Short Name: GV2G

Poles Description3P

Product Or Component Typecomb busbar

Range CompatibilityTeSys D || TeSys GV2 || TeSys K || TeSys U

Product NameFT

RangeLinergy

Complementary

[Ui] Rated Insulation Voltage: 690 V

Net Weight: 0.05 kg

Length116 mm

Mounting Locationon terminal

Offer Sustainability

China Rohs Regulation: X

Mercury Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Rohs Exemption InformationYes

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Contractual warranty

Warranty: 18 months
