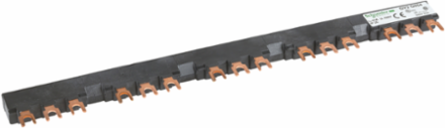

Schneider Electric GV2G554 Linergy FT Comb Busbar 63A 5 Tap-Offs 54mm Pitch 690V

MPN: GV2G554
PPN: SCH-GV2G554

$65.46

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 5 tap-off outlets for the paralleling of 5 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).

Features

The Schneider Electric GV2G554 is engineered specifically for Linergy FT and TeSys Deca, GV2, K, and U ranges. It provides precise upstream parallel wiring for up to 5 devices such as manual motor starters and LS1D32 fuse carriers featuring a standard 54mm connection pitch to ensure a seamless, gap-free fit inside your enclosure.
Rated for a conventional free air thermal current of 63A and an insulation voltage up to 690V, this 3-phase comb busbar easily distributes heavy power across grouped branch circuits. It eliminates the risk of overheating and voltage drops when running multiple motor loads simultaneously, maximizing system reliability under heavy industrial operations.
By consolidating upstream power distribution into a single, pre-fabricated comb structure with 5 tap-offs, it cuts down on complex point-to-point jumper wires and minimizes labor time. The ultra-compact 10.2-inch (260mm) width drastically reduces wire clutter, freeing up valuable rail space inside your control panel for a much cleaner layout.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United Kingdom, Mexico, Romania, United States

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Connection Pitch	54 mm, 54 mm
Certificate Agency	CE, cULus
Local Publishable Date	2026-07-07
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2207006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV2G
Energy Efficiency Optimized	False
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	comb busbar
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	260 mm
[Ui] Rated Insulation Voltage	690 V
Number Of Tap-offs	5
Package Weight(Lbs)	112.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Range Of Product	TeSys GV2, TeSys fuse-disconnector, TeSys U, TeSys K, TeSys Deca
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	GV2G
Fixing Mode	terminals
Number Of Tap Offs	5
Product Name	FT
Range	Linergy
Sustainable Packaging	Yes
Pep Code	ENVPEP2207006EN
[Ith] Conventional Free Air Thermal Current	63 A
Accessory / Separate Part Category	connection accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536908585

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2207006EN
