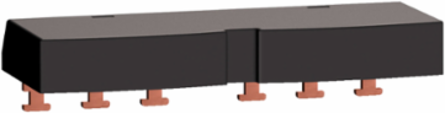

Schneider Electric GV3G264 Linergy FT Comb Busbar 3P 115A 690V for 2 Contactors with 64mm Pitch
- MPN: GV3G264
- PPN: SCH-GV3G264
CAD
$70.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV busbar set, 3 phases, 115A/690V, for the upstream parallel wiring of groups of motor starters composed of GV3 motor circuit breakers. For use with Everlink BTR screw terminals devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 64mm.
Features
- Outfitted with two precision-spaced tap-off outlets, this LinergyTM FT comb busbar allows industrial control panel builders to feed two independent motor starters in parallel from an upstream line. It eliminates the need for redundant line-side terminal routing and complex jumper loops, providing a clean, professional, and efficient motor control center layout.
- Featuring an exact 2.52-inch (64 mm) connection pitch, this pre-engineered link aligns flawlessly with EverLinkTM BTR screw terminal devices without requiring manual adjustments or physical bending. This modular footprint guarantees seamless integration alongside TeSys GV3P, GV3L, and LC1D40A through LC1D65A three-phase contactors, dropping physical assembly time to a fraction of traditional field wiring methods.
- Built with a robust 115-amp conventional free-air thermal current capacity (I_th), this high-performance busbar safely manages heavy three-phase distribution loads without overheating. It prevents thermal hot-spots inside enclosed control environments, ensuring continuous, reliable current path delivery to neighboring motor protection switches under full-load operation.
- Carrying a certified 690V AC rated insulation voltage (U_i), this heavy-duty comb busbar provides exceptional dielectric strength and isolation between phases. It safeguards nearby solid-state industrial electronics and maintenance staff from flashovers and dangerous short-circuit faults, making it ideal for 480V and 600V factory infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom, Mexico, Sweden, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- TeSys U, TeSys K, TeSys GV3, TeSys Deca
- Carbon Footprint Of The Distribution Phase [A4]
- 0.285446354, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.106934439, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 21.07
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Connection Pitch
- 64 mm
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- comb busbar
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Width Nominal
- 119 mm
- [Ui] Rated Insulation Voltage
- 690 V
- Number Of Tap-offs
- 2
- Package Weight(Lbs)
- 154.0 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 21.07
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 148.81
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.026
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 374.07
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 374.07
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyCE, cULus
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.575993493
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.484113459
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Use Carbon Footprint21.07
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV3G
Device Short NameGV3G
Fixing Modeterminals
Number Of Tap Offs2
Product NameFT
RangeLinergy
Software Versionv5.9.4
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Pep CodeENVPEP2207006EN
Pep Verification Date2023-09-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %58
[Ith] Conventional Free Air Thermal Current115 A
Accessory / Separate Part Categoryconnection accessory
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]21.016
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4046.1
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]546.17
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4420.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4046.1
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 29.52248775
- Environmental Disclosure
- ENVPEP2207006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2207006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityGV3P, LC1D40A...D65A, GV3L
Reach Free ShvcYes
Mercury FreeYes
Circularity ProfileENVEOLI2207006
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-09-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- TeSys U, TeSys K, TeSys GV3, TeSys Deca
Product Or Component Typecomb busbar
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
