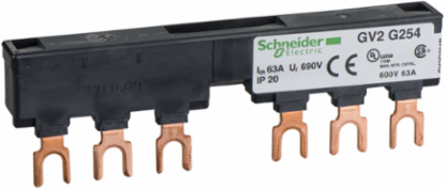

Schneider Electric GV2G254 Linergy FT Comb Busbar 63A 3P 2 Tap-Offs 54mm Pitch
- MPN: GV2G254
- PPN: SCH-GV2G254
CAD
$40.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).
Features
- This Linergy FT 3-phase comb busbar features 2 pre-spaced tap-off outlets specifically designed to interconnect two manual motor starters simultaneously. For control panel builders, this layout eliminates the time-consuming process of cutting and stripping individual jumper wires, allowing you to bridge upstream line-side power across adjacent starters in seconds.
- Precision-engineered for a seamless drop-in fit, this connection accessory bridges TeSys GV2 (such as GV2ME and GV2P frames), TeSys Deca, TeSys K, and TeSys U motor starters equipped with standard screw clamp terminals. It aligns perfectly with the terminal entrance paths of these specific components, ensuring a rock-solid mechanical and electrical fit without forcing or bending the solid copper teeth.
- Featuring a precise 54mm (2.1-inch) center-to-center terminal connection pitch, this comb link is perfectly proportioned to span across standard starter widths, even when side-mounted auxiliary contact blocks (like GV2AD, GV2AM, or GV2AN) are installed between the units. This optimized width eliminates layout repositioning, ensuring your DIN rail assembly remains clean, square, and fully uniform.
- Boasting a robust 63A conventional free-air thermal current rating alongside an expansive 690V rated insulation voltage, this heavy-duty bar safely distributes high-capacity power across your motor protection network. It effortlessly manages the intense continuous currents and heavy inrush conditions of 3-phase plant machinery, preventing localized terminal overheating and conductor degradation.
- Measuring just 98mm (3.9 inches) in overall length and weighing a lightweight 0.038 kilograms, this low-profile link fits entirely within the upper terminal profiles of your motor circuit breakers. By consolidating the line supply feeding loop right at the starter terminals, it eliminates the need for bulky standalone power distribution blocks or extra wire ducts, preserving valuable panel space for critical automation components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Morocco, Romania, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Connection Pitch
- 54 mm, 54 mm
- Certificate Agency
- CE, cULus
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GV2G
- Fixing Mode
- terminals
- Number Of Tap Offs
- 2
- Product Name
- FT
- Range
- Linergy
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2207006EN
- [Ith] Conventional Free Air Thermal Current
- 63 A
- Accessory / Separate Part Category
- connection accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Range Of ProductTeSys GV2, TeSys fuse-disconnector, TeSys U, TeSys K, TeSys Deca
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2G
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecomb busbar
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal98 mm
[Ui] Rated Insulation Voltage690 V
Number Of Tap-offs2
Package Weight(Lbs)40.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
