Thomas & Betts K650LB LINK-OP BSHG (SOP)

MPN: K650LB
UPC: 783786624522
PPN: T-B-K650LB
UNSPSC: 26121630

$265.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

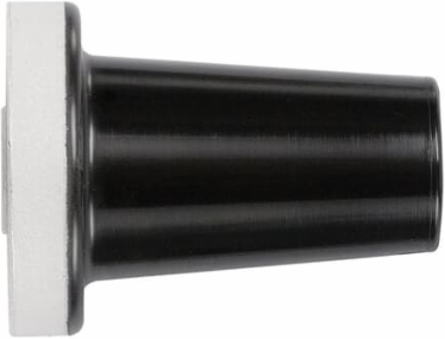

25kV 600 Series Deadbreak Insulating Plug / Stand-Off Plug, includes Silicone Lubricant and Instructions. Length 3.9.39 inch, Widest Diameter 3 inch. Epoxy.

Specifications

Additional Information

Application	The K650LB is designed to provide a threaded mountable plug for use in cam-op cable joint kits. The K650LB is threaded onto the hardware aligning bracket and the retaining sleeves are threaded into bushing.
Effective Date	19980108
Product Name	PRIMARY CABLE ACC. 600 SEP CON
Size	3.00 inch (76.2 mm) Diameter, 3.89 inch (98.8 mm) Length.
Standards	ANSI/IEEE Standard 386

Brand / Label	Elastimold
Material	EPDM Rubber
Product Type	Insulating Plug
Special Functions	Fully rated 25kV, 600 Amp Deadbreak Insulated Plug. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection.
