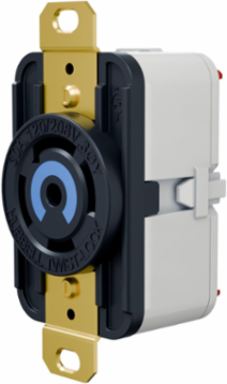

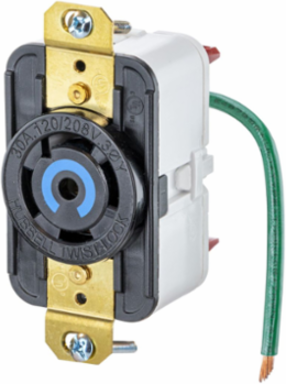

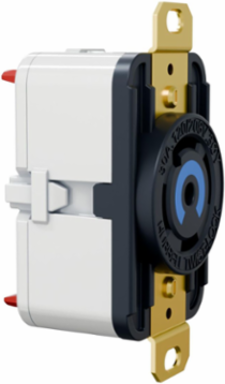

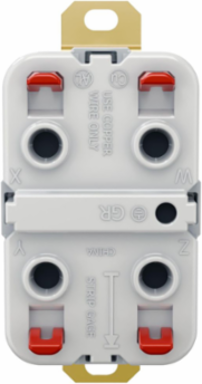

Hubbell Wiring Device-Kellems HBL2810ST EdgeConnect Twist-Lock Receptacle 30A 3P 120/208V L21-30R

MPN: HBL2810ST
UPC: 783585788524
PPN: HBL-HBL2810ST
UNSPSC: 39121406

$109.17

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination

Features

Faster termination time
No need for screwdriver and torque wrench
Spring Termination eliminates strand relaxation
High-impact, abuse-resistant nylon face
Face color coding by voltage facilitates locating and mating of proper devices

Specifications

Key Specifications

Country of Origin	China
Height	1.468 in
Length	3.28 in
Number of Poles	4
Size	3.28 in x 1.7 in x 1.468 in
Voltage Rating	120/208 VAC
Width	1.7 in
General Literature Asset 2 Display Text	Healthcare Product Solutions
Number Of Poles	4
Class Code	A08
Harmonization Code	8536698000
MSDS Flag	No
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	50
Pallet - GTIN - Package	70783585788523
Pallet Length	48.000 in
Pallet Width	40.000 in

Dimensions	3.28 in x 1.7 in x 1.468 in
Industry Standard(s)	WR Rating
Amperage Rating	30 A
Number of Wires	5
Standard	WR Rating
Wire Size	14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
General Literature Asset 1 Display Text	EdgeConnect™ Technology
General Literature Asset 3 Display Text	EdgeConnect™ Technology FAQ
Number Of Wires	5
Freight Class Code	06168002
Image Actual Or Representative	A
Sub Class Code	A08A110
BOX SIZE	7.500x12.400x8.800 (in)
Carton - Number of Sub Packs	50
Carton - SCC-14 Next Lower Level Sub Pack	00783585788524
Case Weight	4.970 lb.
Pallet Height	45.000 in
Pallet Weight	1157.700 lb.
NAICS Code	335931A102
