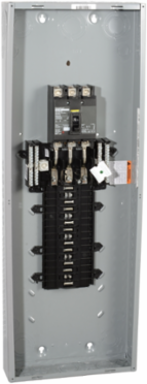

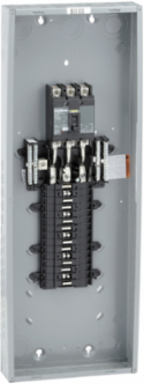

Square D QO330MQ125 QO Load Center 3 Phase, 30 Circuits, 125A Main Breaker, NEMA 1
Square D QO330MQ125 QO Load Center 3 Phase, 30 Circuits, 125A Main Breaker, NEMA 1
- MPN: QO330MQ125
- UPC: 785901290520
- PPN: SCH-QO330MQ125
- UNSPSC: 39121101
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3056.77/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides a 125A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker and is UL rated.
Features
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Faster installation using PoN breakers that connect directly
- 50% more terminations for clutter-free wiring
- Complies with UL 67 listed, CSA, and IEC standards
Specifications
- Voltage
- 240/120 V delta AC, 208Y/120 V AC
- Number of Circuits
- 30
- Phase
- 3 Phase
- Number of Spaces
- 30
- Material
- Welded sheet steel, Tin plated copper busbar
- Enclosure Rating
- NEMA 1
- Cover Torque
- 20 lb.in
- Country of Origin
- United States
Main Breaker Amperage125 A
Short Circuit Current25 kA
Temperature Range-5 °C to 40 °C

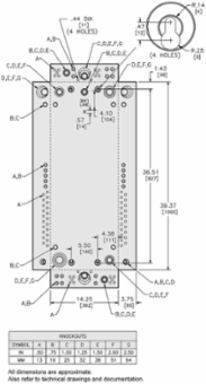

Dimensions (HxW)39.37 in x 14.25 in
FinishBaked enamel Gray
Electrical Connectionlugs
Product CertificationsUL Listed, CSA, IEC standards
