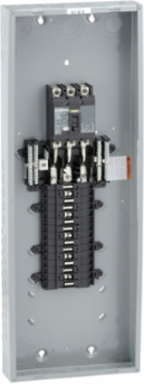

Square D QO330MQ200 QO Load Center, 3 Phase, 30 Spaces, 30 Circuits, 200A Main Breaker, NEMA 1
Square D QO330MQ200 QO Load Center, 3 Phase, 30 Spaces, 30 Circuits, 200A Main Breaker, NEMA 1
- MPN: QO330MQ200
- UPC: 785901290544
- PPN: SCH-QO330MQ200
- UNSPSC: 39121101
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1222.71/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes a QDL circuit breaker and is UL rated.
Features
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Faster installation using PoN breakers that connect directly
- 50% more terminations for clutter-free wiring
- Complies with UL 67 listed, CSA, and IEC standards
Specifications
- Voltage
- 208Y/120 V AC, 240 V delta AC, 240/120 V delta AC
- Short Circuit Current
- 25 kA
- Number of Circuits
- 30
- Load Center Type
- Main breaker

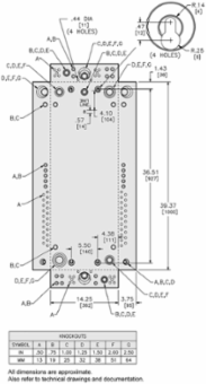

- Height
- 39.37 in
- Wire Size Range
- AWG 4 to 300 kcmil Aluminium/Copper
- Material
- Tin Plated Copper Busbar
- Finish
- Baked Enamel Gray
- Country of Origin
- United States
- Warranty Period
- 18 months
Main Breaker Amperage200 A
Phase3 Phase
Temperature Range-5 °C to 40 °C
Number of Spaces30
Width14.25 in
Electrical ConnectionLugs

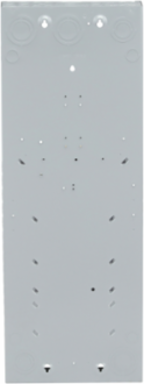

Enclosure MaterialWelded sheet steel
ComplianceRoHS compliant with exemptions, UL Listed, CSA, IEC standards, Mercury Free
Range of ProductQO
