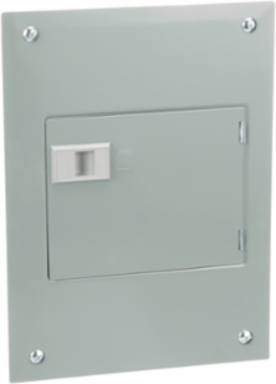

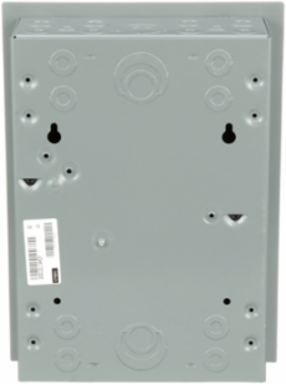

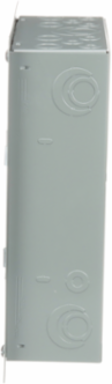

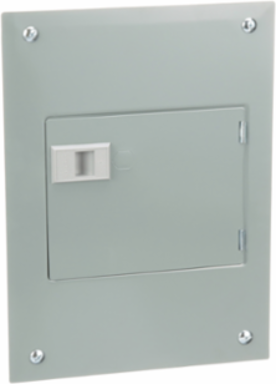

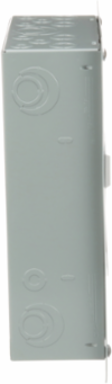

Square D QO612L100DF LOADCENTRE QO MLO 240V 100A 1PH 6SP N1
Square D QO612L100DF LOADCENTRE QO MLO 240V 100A 1PH 6SP N1
- MPN: QO612L100DF
- UPC: 785901785644
- PPN: SCH-QO612L100DF
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$193.11/ EA
Description

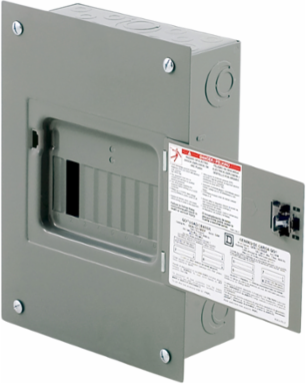

QO® Circuit Breaker Loadcentres, QO612L100DF, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door flush cover, and is UL rated.
Specifications
Environment
- Product Certifications
- UL listed
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212002
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary

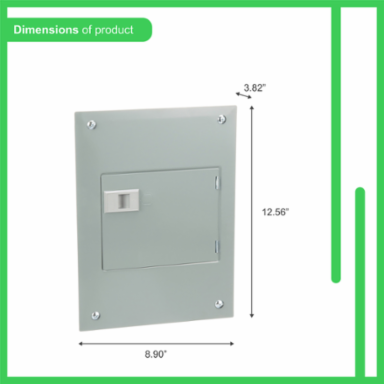

- Height
- 319 mm
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Number Of Circuits
- 12
- Network Number Of Phases
- 1 phase
- Number Of Tandem Circuit Breakers
- 6
- Surface Finish
- baked enamel grey
- Enclosure Material
- welded sheet steel

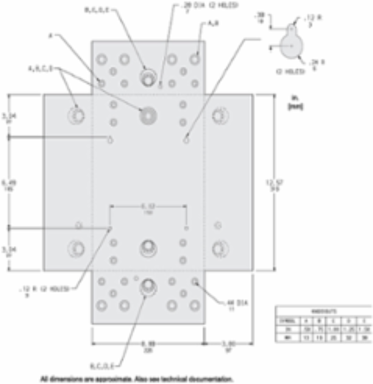

- Width
- 226 mm
- Depth
- 95 mm
- Device Composition
- grounding bar (ordered separately)
Tightening Torquemain lugs 50 lb.in, AWG 8, aluminum/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminum/copper
Electrical Connectionlugs
Number Of Spaces6
Short-Circuit Current10 kA
Materialtin plated aluminum: busbar
[In] Rated Current100 A
Awg GaugeAWG 8...AWG 1 aluminum/copper
Wiring Configuration3-wire
Loadcentre TypeFixed Mains (lugs)
Box Number4
Specifications
- Range Of Product
- QO
- Cover Type
- flush cover with door
Product Or Component TypeLoadcentre
