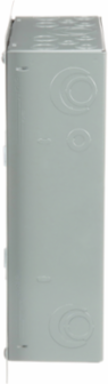

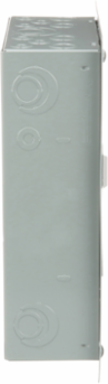

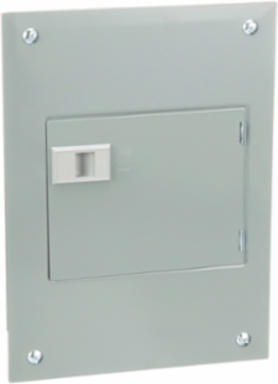

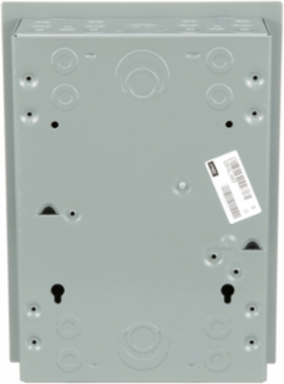

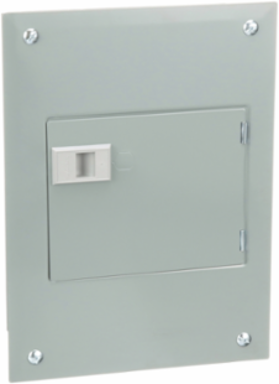

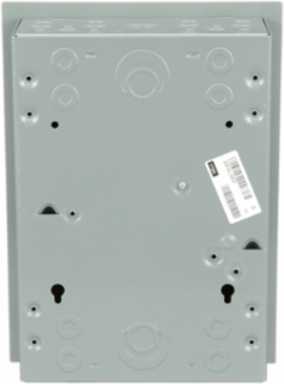

Square D QO816L100DF QO Loadcentre 240V 100A 1 Phase 8 Spaces NEMA 1
- MPN: QO816L100DF
- UPC: 785901785699
- PPN: SCH-QO816L100DF
CAD
$308.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO® Circuit Breaker Loadcentres, QO816L100DF, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door flush cover, and is UL rated.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/240 V AC
- Number of Phases
- 1 phase

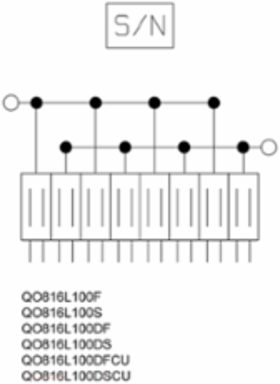

- Wiring Configuration
- 3-wire
- Number Of Spaces
- 8
- Main Lugs
- Fixed main lugs
- Cover Type
- Flush cover with door
- Busbar Material
- Tin plated aluminum
- Surface Finish
- Baked enamel gray
- Product Certifications
- UL listed
- Eu Rohs Directive
- Compliant with exemptions
- RoHS Exemption
- Yes

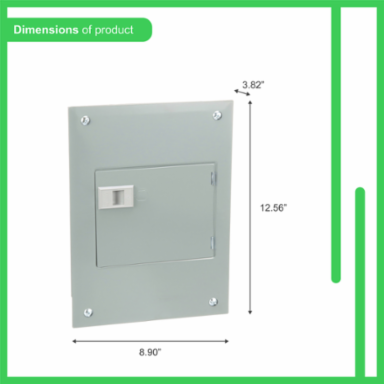

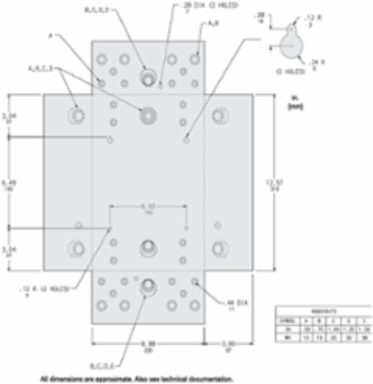

- Height
- 319 mm
- Depth
- 95 mm
- Electrical Connection
- Lugs
- Range Of Product
- QO
- Sustainable Offer Status
- Green Premium product
Amperage100 A
Wire SizeAWG 8...AWG 1 aluminum/copper
Max Short Circuit Current Rating10 kA
Number Of Circuits16
Enclosure TypeNEMA 1 indoor
Tightening Torque50 lb.in for main lugs, AWG 8 to 1/0 aluminum/copper
Enclosure MaterialWelded sheet steel
Operating Temperature Range-5 °C to 40 °C (23 °F to 104 °F)
Mercury FreeYes
China Rohs RegulationOut of China RoHS scope
MaterialTin plated aluminum busbar
Width226 mm
Loadcentre TypeFixed mains (lugs)
Device CompositionGrounding bar (ordered separately)
Ambient Air Temperature For Operation-5 °C to 40 °C
Network Number Of Phases1 phase
