Square D

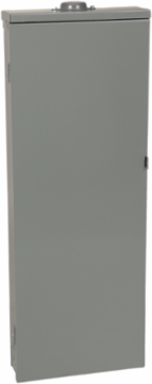

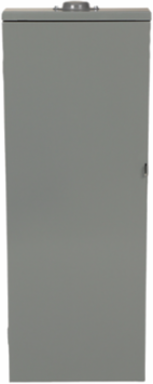

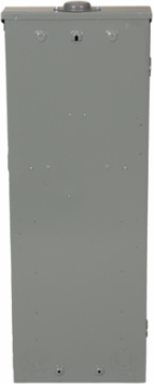

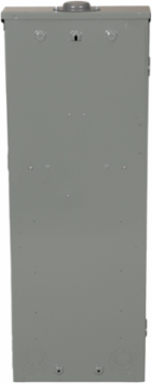

Square D QO342MQ225RB LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT

LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT
LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT
LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT
LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT
LOADCENTRE QO RB MB 225A 3PH 42 CIRCUIT
  • MPN: QO342MQ225RB
  • UPC: 785901290643
  • PPN: SCH-QO342MQ225RB

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4048.08/ EA

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 225A convertible main breaker in a NEMA 3R enclosure. It also includes a QDL circuit breaker and is UL rated.

Specifications

Environment

Product Certifications
UL listed
Ambient Air Temperature For Operation
-5 °C || 40 °C
Nema Degree Of ProtectionNEMA 3R outdoor

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2212001
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant

Complementary

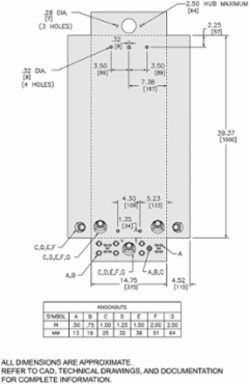

Height
1000 mm
Electrical Connection
lugs
Number Of Spaces
42
Short-Circuit Current
25 kA
Material
tin plated copper: busbar
[In] Rated Current
225 A
Awg Gauge
AWG 4...300 kcmil aluminum/copper
Wiring Configuration
4-wire || 3-wire
Device Composition
grounding bar (ordered separately)
[Ue] Rated Operational Voltage208Y/120 V AC || 240/120 V delta AC || 240 V delta AC
Number Of Circuits42
Network Number Of Phases3 phases
Number Of Tandem Circuit Breakers0
Surface Finishbaked enamel grey
Enclosure Materialwelded galvannealed steel
Width375 mm
Loadcentre TypeConvertible Mains (breaker)
Box Number14R

Specifications

Range Of Product
QO
Enclosure Type
weatherproof enclosure
Product Or Component TypeLoadcentre
Cover Typesurface cover
