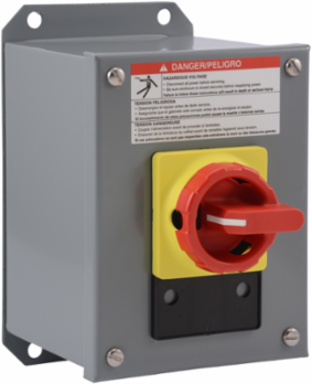

Square D 9421V1A30 TeSys Vario Manual Motor Switch, 20A, 3 Pole, 10HP at 480V, NEMA 12 Enclosure
Square D 9421V1A30 TeSys Vario Manual Motor Switch, 20A, 3 Pole, 10HP at 480V, NEMA 12 Enclosure
- MPN: 9421V1A30
- UPC: 785901058908
- PPN: SCH-9421V1A30
- UNSPSC: 39122233
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$779.65/ EA
Description
Vario manual motor control switches meet UL508 requirements as both enclosed and open manual motor controllers. They are also marked “Suitable as Motor Disconnect” allowing installation on the load side of the motor branch circuit short circuit and ground fault protection. These manual motor control switches include switches mounted in enclosure with a handle. The switch has a 20A current rating and a 5 HP at 240 V, 10 HP at 480V and a 10 HP at 600V ratings per UL508. The switch has a 32A current rating and a 5.5 kW at 230V and 240 V, 11 kW at 400V 415V and 500V and a 15 kW at 690V ratings per IEC. A KCD1YZ low profile handle is used for this device. This 60 mm by 60 mm single hole handle assembly has a red handle and yellow bezel. This switch is mounted in a metallic NEMA Type 12 enclosure. This manual motor control switch is 7.38 inches tall, 5.50 inches wide and 6.25 inches deep. This switch has no auxiliary contacts. This manual motor control switch is UL Listed and CSA certified.
Features
- Designed with various temperature classes
- 50/60 Hz rated
- Customer installed accessories
- Enclosures can be NEMA 1 or NEMA 12
- Conforms to the electrical characteristics in the data sheet by the Underwriters Laboratories (UL)
Specifications
Physical Attributes
- Color
- red/yellow
Conformance Attributes
- Product Certifications
- UL listed file E164864 CCN NLRV, CSA LR81630 class 3211 05
Complementary Attributes
- Maximum Horse Power Rating
- 5-5 hp 240 V AC, 10-10 hp 480/600 V AC
Line Rated Current20 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- ROHS EUR Full Compliance Status
- Under investigation
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Enclosure Type
- dust and damp proof enclosure indoor
- Lock Type
- padlockable
- Permissible Voltage
- 600 V AC
- Range Of Product
- VARIO
- Sustainable Packaging
- No
- Medium Desc
- Manual Motor Switch, TeSys Vario, rotary handle, 20A, 3 pole, 10HP at 480V, metallic enclosure, UL Type 12
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Scope PerimeterAt least in Europe
ROHS EUR In ScopeYes
ROHS EUR Full Compliance Status IdUNDER_INVESTIGATION
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Enclosure Materialmetallic metal
Energy Efficiency OptimizedFalse
Package Weight Lbs1.751 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Nema Degree Of Protection
- NEMA 12
- Packaging Without Single Use Plastic
- Yes
Take BackNo
EU ROHS DirectiveUnder investigation
Packaging Made With Recycled CardboardYes
General Attributes
- Range Of Product
- VARIO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
