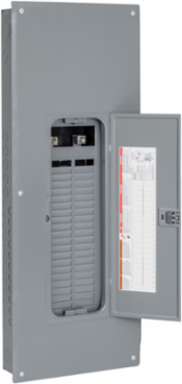

Square D CQO142L225PGC QO Loadcentre 225A, 42 Spaces, 80 Circuits, NEMA 1, CSA
- MPN: CQO142L225PGC
- UPC: 785901971948
- PPN: SCH-CQO142L225PGC
CAD
$466.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's QO Loadcentre is a robust and efficient solution for power distribution needs, featuring a capacity of 225A and accommodating up to 42 spaces and 80 circuits. This loadcentre is designed with versatility and reliability in mind, suitable for a variety of electrical systems while meeting NEMA 1 and CSA standards. Its thoughtful engineering ensures optimal performance in both residential and light commercial applications, making it an essential component for effective panel building and management.
Documentation & Downloads
Specifications
Additional
- Amperage
- 225 A
- Max Short Circuit Current Rating
- 65 kA
- Number of Spaces
- 42
- Tightening Torque
- main lugs 250 lb.in, AWG 4–250 kcmil, aluminum/copper
- Width
- 362 mm (14.25 in)
- Cover Type
- combination flush/surface cover
- Enclosure Rating
- NEMA 1 indoor
- Compliance
- RoHS Compliant, REACh Compliant, Mercury Free, Toxic Heavy Metal Free, China RoHS Compliant
- Ambient Air Temperature For Operation
- -5 °C to 40 °C
Voltage240 V AC
Number of Circuits80
Number of Phases1 phase
Height965 mm (37.99 in)
Depth95 mm (3.74 in)
Ground Barincluded (not installed)
CertificationsCSA
Loadcentre TypePoN Convertible Mains (lugs)
Product TypeLoadcentre
