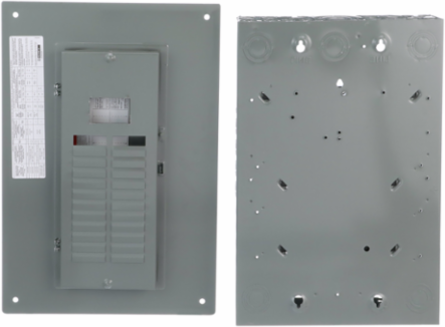

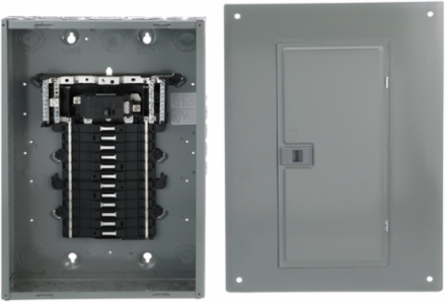

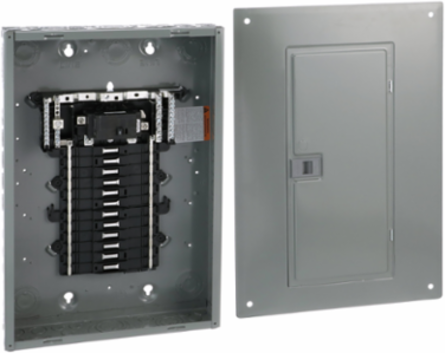

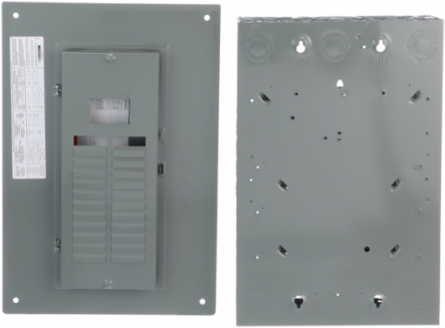

Square D CQO124M100PC QO Loadcentre, 24 Spaces, 44 Circuits, 100A, NEMA 1, CSA
- MPN: CQO124M100PC
- UPC: 785901781332
- PPN: SCH-CQO124M100PC
CAD
$151.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

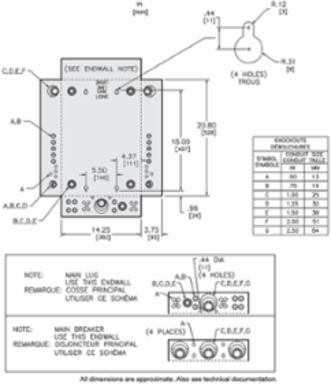

QO loadcentres offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO loadcentres are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO loadcentres enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO loadcentre is supplied with a plug on neutral (PoN) convertible main circuit breaker that is rated at 100A 240 VAC single phase. This QO loadcentre provides a 22 kA breaking capacity. This system provides 24 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. A ground bar can be ordered for this load center. This QO loadcentre has a height of 20.92 inches, a width of 14.25 inches and a depth of 3.75 inches. QO loadcentre is CSA certified.
Features
- Engineered with an advanced Plug-on Neutral design, this enclosure eliminates the frustrating, time-consuming need to route individual pigtail wires to the neutral bar when installing arc-fault (CAFI) or dual-function breakers. This drastically cuts down on labor time, leaving you with a clean, easily serviceable panel interior that reduces the risk of loose connections and future troubleshooting headaches
- Featuring 24 full-sized spaces and the robust capacity to house up to 44 single-pole circuits using space-saving tandem breakers, this panel maximizes your distribution potential within a compact design. This gives homeowners and electricians the flexibility to easily add dedicated circuits for future electric vehicle (EV) chargers, home offices, or hot tubs without the costly expense of installing a secondary subpanel.
- Designed with a highly versatile combination flush/surface cover, this NEMA 1 rated indoor electrical panel adapts seamlessly to your specific job site, whether you are recessing it between wall studs or mounting it directly onto utility room concrete. The rugged steel construction allows you to rotate the enclosure 180 degrees for top or bottom service entrance feeds, protecting internal tin-plated copper busbars from environmental dust and mechanical damage.
- Strictly CSA approved for the Canadian market and boasting a robust 22,000 Ampere Interrupting Capacity (22kAIC), this Schneider Electric distribution panel is built to safely interrupt severe short circuits before catastrophic thermal damage occurs. Trusting rigorously tested, code-compliant OEM hardware ensures your installation passes tough local electrical inspections the first time and keeps property liability insurance strictly valid.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 3.833325, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0089478794, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Load Center Type

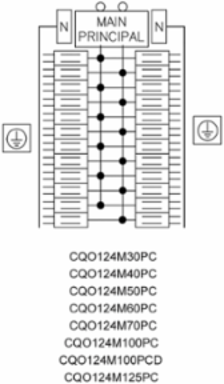

- PoN Convertible Mains (breaker)
- Number Of Circuits
- 44
- Number Of Tandem Circuit Breakers
- 20
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 87 kg CO2 eq.
- Pep Code
- ENVPEP2212001EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Height Nominal
- 531 mm
- Certificate Agency
- CSA
- Short-circuit Current
- 22 kA
- Package Weight(Lbs)
- 11.34 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.0634
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.1758
- Water Pollution (M3) Manufacturing [A1-a3]
- 3900.15
- Customs Code
- 8537109150
Persona Type NamesEnd User, Contractor, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1889727941
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.8314411765
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Cover Typecombination flush/surface cover
Enclosure Materialwelded sheet steel
Installation Directionvertical
Materialtin plated copper: busbar
Number Of Spaces24
Phase1 phase
Product Or Component TypeLoad Center
ReturnabilityYes
Surface Finishbaked enamel Gray
Tightening TorqueCover 20 lb.in
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Lexington
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %88
Width Nominal362 mm
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052
Water Pollution (M3) Operational Energy Use [B6]4.3059
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212001EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.95002785
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
