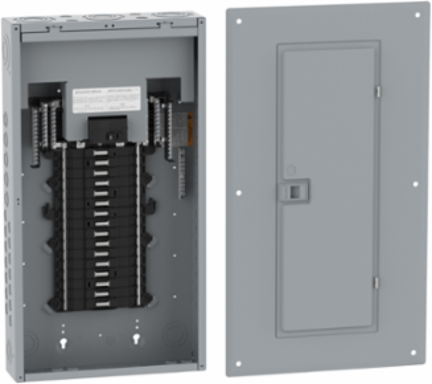

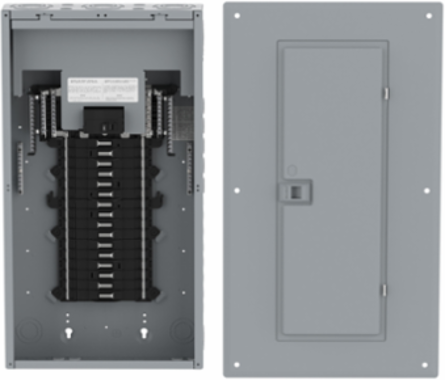

Square D CQO132M100PC QO Loadcentre 1 Phase 32 Spaces 53 Circuits 100A Main Breaker NEMA 1
- MPN: CQO132M100PC
- UPC: 785901781905
- PPN: SCH-CQO132M100PC
CAD
$167.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

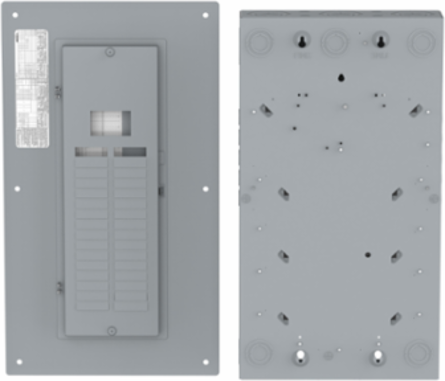

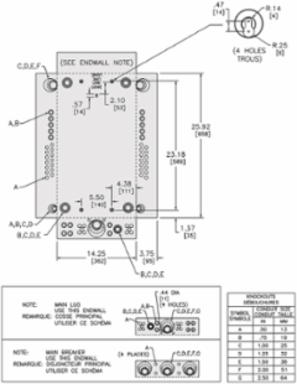

QO loadcentres offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO loadcentres are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO loadcentres enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO loadcentre is supplied with a plug on neutral (PoN) convertible main circuit breaker that is rated at 100A 240 VAC single phase. This QO loadcentre provides a 22 kA breaking capacity. This system provides 32 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. A ground bar can be ordered for this load center. This QO loadcentre has a height of 26.02 inches, a width of 14.25 inches and a depth of 3.75 inches. QO loadcentre is CSA certified.
Features
- Engineered with a fully distributed plug-on neutral bar, this load center completely eliminates the need for frustrating, time-consuming pigtail wiring when installing combination arc fault (CAFCI) and ground fault (GFCI) breakers. This direct-connection design dramatically reduces wire clutter inside the enclosure, allowing electrical contractors and advanced DIYers to execute faster, cleaner, and more reliable panel upgrades.
- Designed to hold up to 32 full-size spaces and a maximum of 53 total circuits using space-saving tandem breakers, this 100A panel provides exceptional layout flexibility for growing power demands. Whether you are wiring a new home addition, running dedicated heavy-duty shop circuits, or upgrading major appliances, this high-density configuration ensures you won't prematurely outgrow your electrical distribution center.
- Built exclusively for industry-leading Square D QO circuit breakers, the internal architecture features premium tin-plated copper bus bars that deliver maximum electrical conductivity and superior corrosion resistance. This rugged construction works perfectly with QO clip-on mechanisms to ensure a tight, secure fit that resists thermal expansion, actively preventing dangerous loose connections and arcing under heavy loads.
- Manufactured specifically for the Canadian market, this indoor-rated NEMA 1 enclosure comes complete with a factory-installed 100-amp main breaker and a versatile combination flush/surface cover for a professional finish. It is fully CSA approved for vertical, horizontal, or inverted mounting, guaranteeing your residential power distribution infrastructure safely complies with local building codes and passes rigorous electrical inspections.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 95 mm |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 3.833325, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0089478794, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Load Center Type | PoN Convertible Mains (breaker) |
| Number Of Circuits | 53 |
| Number Of Tandem Circuit Breakers | 21 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 87 kg CO2 eq. |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 661 mm |
| Certificate Agency | CSA |
| Short-circuit Current | 22 kA |
| Package Weight(Lbs) | 11.34 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Manufacturing [A1-a3] | 3900.15 |
| Customs Code | 8537109150 |
| Persona Type Names | End User, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1889727941 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 82 kg CO2 eq., 81.8314411765 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Cover Type | combination flush/surface cover |
| Enclosure Material | welded sheet steel |
| Installation Direction | vertical |
| Material | tin plated copper: busbar |
| Number Of Spaces | 32 |
| Phase | 1 phase |
| Product Or Component Type | Load Center |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Tightening Torque | Cover 20 lb.in |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 362 mm |
| [Ue] Rated Operational Voltage | 240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 86.95002785 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
|---|
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
