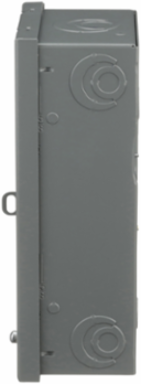

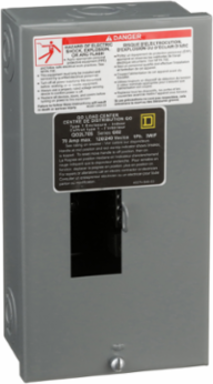

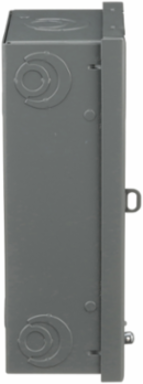

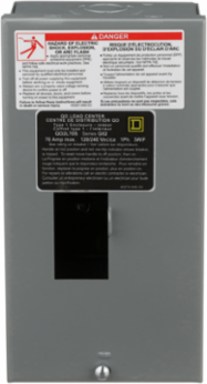

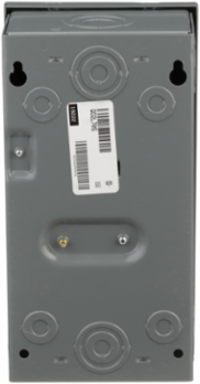

Schneider Electric QO2L70S QO Load Center, 1 Phase, 2 Spaces, 2 Circuits, 70A, NEMA 1
- MPN: QO2L70S
- UPC: 785901707738
- PPN: SCH-QO2L70S
CAD
$112.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated. The load center is CSA certified.
Features
- Rated for a robust 70 Amps at 120/240V, this fixed main lug subpanel provides the ideal power distribution solution for secondary residential applications. It safely isolates heavy electrical loads—like workshop air compressors, hot tub pumps, or dedicated HVAC equipment—preventing dangerous overloads and nuisance tripping at your primary home breaker box.
- Engineered with two standard breaker spaces, this compact electrical panel easily accommodates up to four total circuits when using space-saving Square D QO tandem breakers. This flexible, high-density design gives DIY homeowners and electricians the perfect amount of capacity for detached sheds or garage overhauls without the unnecessary cost and physical bulk of a full-sized residential panel.
- Constructed from rugged, welded sheet steel, this NEMA 1 rated indoor enclosure is specifically designed for surface mounting directly onto walls or exposed structural studs. This completely eliminates the frustrating, messy process of cutting into existing finished drywall during retrofits, providing a highly durable housing that keeps live wiring safely contained in basements, utility rooms, and dry workshops.
- Built with high-conductivity, tin-plated aluminum busbars that accept both copper and aluminum wiring, this unit is engineered exclusively for industry-leading Square D QO plug-on circuit breakers. Utilizing OEM-approved hardware guarantees a tight, reliable physical connection that prevents arcing, while allowing you to leverage QO’s exclusive Visi-Trip technology for instant visual fault identification.
- Fully cULus listed and CSA certified, this trusted Schneider Electric load center rigorously satisfies North American safety standards for residential and light commercial voltage distribution. Relying on factory-tested, compliant hardware ensures your electrical expansion project easily passes strict municipal inspections and protects your property against catastrophic electrical failures.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/240 V AC
- Short-Circuit Current Rating
- 10 kA
- Number of Spaces
- 2
- Load Center Type
- Fixed Mains (lugs)
- Wiring Configuration
- 3-wire
- Width
- 119 mm (4.69 in)
- Material
- Tin plated aluminum (busbar), welded sheet steel (enclosure)
- Product Certifications
- cULus, CSA Certified
- Mercury Free
- Yes
- China RoHS
- Out of China RoHS scope
- Warranty
- 18 months
Amperage70 A
Number of Phases1 phase
Number of Circuits2
Electrical Connectionlugs
Height233 mm (9.17 in)
Depth79 mm (3.11 in)
Enclosure RatingNEMA 1 indoor
Ambient Air Temperature Range-5 °C to 40 °C (23 °F to 104 °F)
RoHS ComplianceCompliant with Exemptions
Reach RegulationContains SVHC above threshold
Country of OriginMexico
