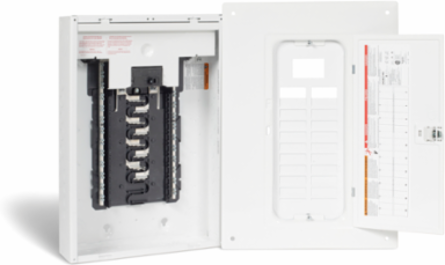

Schneider Electric CHOM1632M60GC Homeline Load Center 60A Main Breaker, 32 Circuits, NEMA 1

Homeline Load Center 60A Main Breaker, 32 Circuits, NEMA 1
  • MPN: CHOM1632M60GC
  • UPC: 785901830771
  • PPN: SCH-CHOM1632M60GC

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$159.38/ EA

    Description

    CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a main circuit breaker that is rated at 60A single phase. This CHOM load center provides a 22kA breaking capacity. This system provides 16 spaces in a NEMA 1 enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.

    Specifications

    Amperage
    60 A
    Short-Circuit Current
    22 kA
    Loadcentre Type
    Main Breaker
    Number of Spaces
    16
    Wire Gauge Range
    AWG 6 to AWG 2/0 aluminum/copper
    Material
    Tin plated aluminum (busbar), Welded sheet steel (enclosure)
    Cover Color
    White
    NEMA Rating
    NEMA 1 indoor
    Wiring Configuration
    3-wire
    Environmental Disclosure
    ENVPEP1403002
    Mercury Free
    Yes
    EU RoHS Directive
    Compliant
    Rohs Exemption Information
    Yes
    Country of Origin
    US
    Voltage120/240 V AC
    Phase1 phase
    Number of Circuits32
    Number of Tandem Circuit Breakers16
    Mounting ModeWall mount
    Cover TypeCombination flush/surface cover
    Product CertificationsCSA Certified
    Operating Temperature Range-5 b0C to 40 b0C
    Electrical ConnectionLugs
    Toxic Heavy Metal FreeYes
    China RoHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
    Reach RegulationContains SVHC above threshold
    Sustainable Offer StatusGreen Premium product
    Range of ProductHomeline
