Bryant

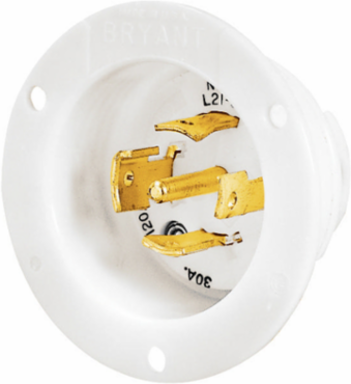

Bryant 72330MB Flanged Inlet Locking Device, 30A 3-Phase Wye 347/600V AC, 4-Pole, 5-Wire, White

Flanged Inlet Locking Device, 30A 3-Phase Wye 347/600V AC, 4-Pole, 5-Wire, White
  • MPN: 72330MB
  • UPC: 781786702967
  • PPN: HBL-72330MB
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$136.43/ EA

Description

Locking Devices, Industrial, Flanged Inlet, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30P, Screw Terminal, White

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws
  • Mounting screws included
  • Standard Product

Specifications

Specifications

Country of Origin
United States
Height
2.02 in
Amperage Rating
30 A
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
NEMA Rating
L23-30P
Number of Wires
5-Wire
Special Features
Standard Product
Type
Flanged Inlet
Wire Size
#14 AWG to #8 AWG
Width
2.88 in
Display Size
Standard Sized Product
Number Of Poles
4-Pole
Style
Equipment Base
Description - Invoice
LKG FLG-INLT, 30A 347/600V, L23-30P,WH
Harmonization Code
8536694020
MSDS Flag
No
Material - Mounting Hardware
Screw Mounting
Material
Composite
BOX SIZE
5.300x14.600x6.100 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
781786702967
Each - Pack Description
Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3500V
InsulationInsulated Body
Number of Poles4-Pole
Size2.88 in x 2.88 in x 2.02 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase Y 347/600 VAC
Voltage Rating Description3 Phase Y 347/600V AC
ConnectivityScrew Terminals
Nema RatingL23-30P
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
