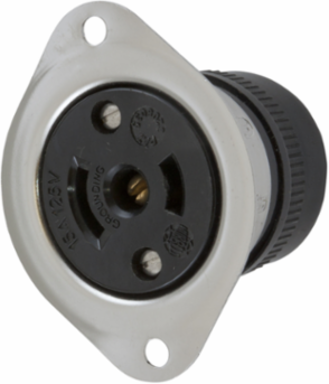

Hubbell Wiring Device-Kellems HBL7598 Midget Twist-Lock Flanged Receptacle 2.06 x 1.62 x 1.25 Inch, 15A 125V AC
- MPN: HBL7598
- UPC: 783585237831
- PPN: HBL-HBL7598
- UNSPSC: 39121406
CAD
$56.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Stainless Steel Flange.
Features
- Stainless Steel mounting flange
- High heat resistant phenolic base
- Standard
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.06 in x 1.62 in x 1.25 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Flanged Receptacle
- Wire Size
- #18 AWG to #14 AWG
- Weight
- 0.10 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- ML-2R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7598
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.298x12.298x2.548 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237831
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height1.25 in
Length2.06 in
Amperage Rating15 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingML-2R
Number of Wires3-Wire
Size2.06 in x 1.62 in x 1.25 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating125 V
Voltage Rating Description125 V
Width1.62 in
Display SizeMidget Locking Devices
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG RCPT, MIDGET 15A 125V, ML-2R
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
