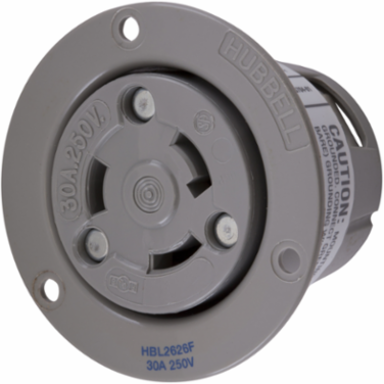

Hubbell Wiring Device-Kellems HBL2626F Twist-Lock Insulgrip Flanged Receptacle 30A 250V AC 2-Pole 3-Wire Gray Nylon
- MPN: HBL2626F
- UPC: 783585038957
- PPN: HBL-HBL2626F
- UNSPSC: 39121406
CAD
$136.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Insulgrip® Flanged Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Heat stabilized, Gray Nylon
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- High Temperature Version
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.36 in x 2.98 in x 2.98 in
- Horsepower - Maximum
- 2
- Length
- 2.36 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L6-30R
- Number of Wires
- 3-Wire Grounding
- Size
- 2.36 in x 2.98 in x 2.98 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #16 AWG to #8 AWG
- Width
- 2.98 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- CAT#2626, MOD, HI TEMP, GY
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 9.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height2.98 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
Amperage Rating30 A
ColorGray
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesHigh Temperature Version
Voltage Rating250 VAC
Weight0.30 lb.
ConnectivityBack Wired Screw Terminals
Nema RatingL6-30R
Number Of Wires3-Wire Grounding
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2626F
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE12.548x6.168x3.168 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585038957
Case - Total Units30 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
