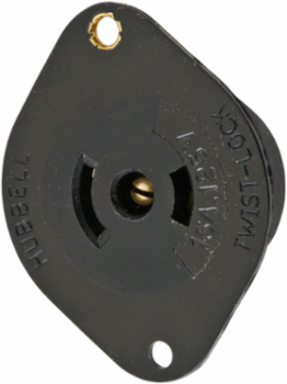

Hubbell Wiring Device-Kellems HBL7596N Midget Twist-Lock Flanged Receptacle, 15A 125V AC, 2-Pole, Nylon Flange
- MPN: HBL7596N
- UPC: 783585237824
- PPN: HBL-HBL7596N
- UNSPSC: 39121406
CAD
$43.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Black Nylon Flange.
Features
- Fully Insulated nylon casing with integral flange
- Black color blends in with equipment
- Standard
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Current / Amperage Rating
- 15 A
- Height
- 0.92 in
- Length
- 2.06 in
- Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- ML-2R
- Number of Wires
- 3-Wire
- Size
- 2.06 in x 1.62 in x 0.92 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.62 in
- Display Size
- Midget Locking Devices
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-RCPT, MIDGET 15A 125V, ML-2R,NM
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 4.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 432.000 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions2.06 in x 1.62 in x 0.92 in
Industry Standard(s)Certified to CSA C22.2 No.42;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard
TypeFlanged Receptacle
Wire Size#18 AWG to #14 AWG
Weight0.05 lb.
ConnectivityScrew Terminals
Nema RatingML-2R
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7596N
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.300x12.300x2.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585237824
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585237823
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
