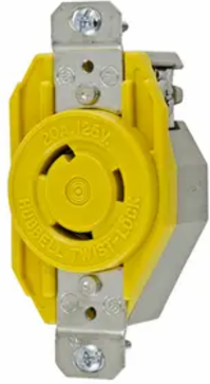

Hubbell Wiring Device-Kellems HBL23CM10 Corrosion Resistant Twist-Lock Receptacle 20A 125V AC 2-Pole Yellow
- MPN: HBL23CM10
- UPC: 783585808147
- PPN: HBL-HBL23CM10
- UNSPSC: 39121406
CAD
$54.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Single Flush Receptacle, 20A, 125V AC, 2 Pole, 3 Wire Grounding, Yellow
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.73 in x 1.23 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L5-20R
- Number of Wires
- 3-Wire Grounding
- Size
- 3.28 in x 1.73 in x 1.23 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
- Wire Size
- #16 AWG to #8 AWG
- Width
- 1.73 in
- General Literature Asset 1 Display Text
- Food Processing Guide
- Connectivity
- Back and Side Wired
- Nema Rating
- L5-20R
- Number Of Wires
- 3-Wire Grounding
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 23CM10A;23CM10AB
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 7.300x13.100x10.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585808147
- Case Weight
- 4.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height1.23 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
Voltage Rating125 VAC
Weight0.50 lb.
Engineering Drawing 1 Display TextHBL23CM10 AutoCAD Drawing
General Literature Asset 2 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, CM, 20A 125V, L5-20R, YM
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
