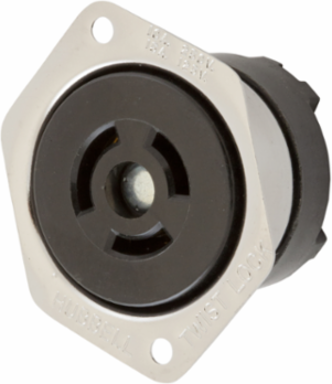

Hubbell Wiring Device-Kellems HBL7557 Twist-Lock Flanged Receptacle 10A 250V, 3-Pole, Stainless Steel
- MPN: HBL7557
- UPC: 783585237664
- PPN: HBL-HBL7557
- UNSPSC: 39121406
CAD
$94.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Stainless Steel Flanged Receptacle, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Brown/Stainless.
Features
- Heat resistant thermoset construction
- Stainless steel casing
- #8-32 terminal screws
- Mounting screws included
- Metallic Flange
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.31 in x 1.75 in x 1.32 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Wires
- 3-Wire
- Size
- 2.31 in x 1.75 in x 1.32 in
- Standard
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 250/125 V
- Voltage Rating Description
- 250/125 V
- Width
- 1.75 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7557
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.600x12.300x2.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237664
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating10/15 A
Height1.32 in
Length2.31 in
Amperage Rating10/15 A
Dielectric StrengthWithstands 2,000V minimum
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesMetallic Flange
TypeReceptacle
Wire Size#18 AWG to #10 AWG
Weight0.15 lb.
ConnectivityScrew Terminals
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG RCPT, 3P3W, 10A 250V/15A125V
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A160
Current Rating10 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
