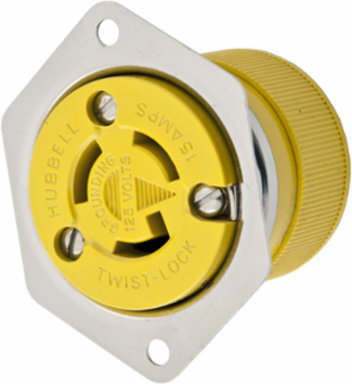

Hubbell Wiring Device-Kellems HBL47CM15 Twist-Lock Marine Grade Flanged Receptacle 15A 125V 2-Pole 3-Wire
- MPN: HBL47CM15
- UPC: 783585237022
- PPN: HBL-HBL47CM15
- UNSPSC: 39121406
CAD
$99.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Flanged Receptacle, 15A, 125V, 2 Pole, 3 Wire Grounding, NEMA L5-15R, Stainless steel casing, Yellow melamine
Features
- Heat resistant thermoset construction
- Stainless steel casing
- #8-32 terminal screws
- Mounting screws included
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.31 in x 2.31 in x 2.08 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498;WR Rating
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L5-15R
- Number of Wires
- 3-Wire Grounding
- Size
- 2.31 in x 2.31 in x 2.08 in
- Standard
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498;WR Rating
- Wire Size
- #18 AWG to #10 AWG
- Width
- 2.31 in
- Connectivity
- Screw Terminals
- Nema Rating
- L5-15R
- Number Of Wires
- 3-Wire Grounding
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 47CM15
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.298x12.298x2.548 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237022
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height2.08 in
Length2.31 in
Amperage Rating15 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
Voltage Rating125 VAC
Weight0.15 lb.
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG-RCPT, CM, 15A 125V L5-15R
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight7.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
