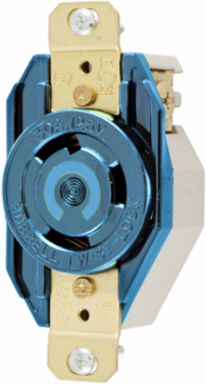

Hubbell Wiring Device-Kellems HBL2620M6 Twist-Lock® Receptacle 30A 250V AC 2-Pole Nylon, Blue
- MPN: HBL2620M6
- UPC: 783585454627
- PPN: HBL-HBL2620M6
- UNSPSC: 39121406
CAD
$91.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Nylon face, back and side wire, Blue
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.31 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Amperage Rating
- 30 A
- Color
- Blue
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Voltage Rating
- 250 VAC
- Width
- 1.70 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG RCPT, 30A 250V, L6-30R, BLUE
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.700x10.000x4.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585454627
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height1.31 in
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL6-30R
Number of Wires3-Wire Grounding
Size3.28 in x 1.70 in x 1.31 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Wire Size#16 AWG to #8 AWG
ConnectivityBack and Side Wired Screw Terminals
Nema RatingL6-30R
Number Of Wires3-Wire Grounding
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.700 lb.
Lowest Level UOMEach
Certifications
- Buy American Compliant
- Yes
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
EU RoHS IndicatorNo
