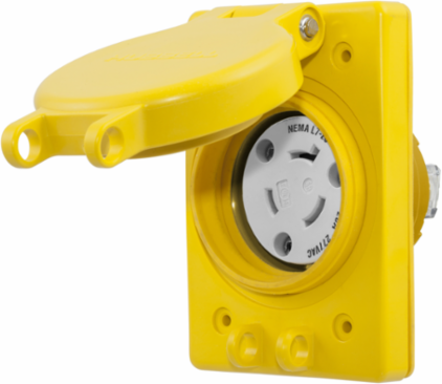

Hubbell Wiring Device-Kellems HBL67W49 Watertight Twist-Lock® Receptacle, NEMA L7-20R, 20A, 277VAC, 2-Pole
- MPN: HBL67W49
- UPC: 783585433165
- PPN: HBL-HBL67W49
- UNSPSC: 39121406
CAD
$183.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 277VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20R, Yellow.
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- NEMA Rating
- L7-20R
- Dielectric Voltage
- 2500 V AC
- Operating Temperature Range
- -40°C to +60°C
- Dimensions
- 4.56 in x 3.10 in x 2.92 in
- Width
- 3.10 in
- Seal Type
- Thermoplastic elastomer
- Contact Carrier Material
- White Nylon
- Contacts Material
- Nickel plated brass
- Hardware Material
- Stainless Steel
- UV Resistance
- UV stabilized
- Color
- Yellow
Voltage277 VAC
Number of Wires3-Wire
TypeReceptacle
Temperature Rise30°C max
Wire Size#18 AWG to #8 AWG
Length4.56 in
Height2.92 in
Body MaterialPBT
Terminal Retainer MaterialClear polycarbonate
Terminal Screws MaterialNickel plated brass
Moisture ResistanceUL Listed 4, 4X, 12, 6, 6P
ComplianceUL Listed, CSA Certified
Country of OriginPR
