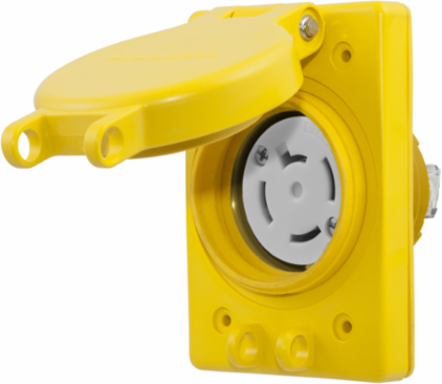

Hubbell Wiring Device-Kellems HBL67W09 Watertight Twist-Lock Receptacle 20A 3-Phase Y 120/208V
- MPN: HBL67W09
- UPC: 783585456645
- PPN: HBL-HBL67W09
- UNSPSC: 39121406
CAD
$195.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 3 Phase WYE 120/208VAC, 4 Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA, Yellow
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.56 in x 3.10 in x 3.46 in
- Industry Standard(s)
- IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
- Amperage Rating
- 20 A
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
- Voltage Rating
- 3-Phase Y 120/208 VAC
- Voltage Rating Description
- 3-Phase Y 120/208 VAC
- Engineering Drawing 1 Display Text
- HBL67W09 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Description - Invoice
- WATERTIGHT RECEP, 20A 3PH Y 120/208V
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A116
- BOX SIZE
- 4.995x11.995x9.125 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585456645
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height3.46 in
Length4.56 in
Standards - RoHS Compliance StatusCM
ColorYellow
Number of Poles4-Pole
Size4.56 in x 3.10 in x 3.46 in
TypeReceptacle
Wire Size#18 AWG to #8 AWG
Width3.10 in
General Literature Asset 1 Display TextWatertight Wiring Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Number Of Poles4-Pole
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number67W09H
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
