Schneider Electric TM221ME16TG Modicon M221 Logic Controller, 16 I/O, PNP, Ethernet, IP20, 0.264 kg
Schneider Electric TM221ME16TG Modicon M221 Logic Controller, 16 I/O, PNP, Ethernet, IP20, 0.264 kg
- MPN: TM221ME16TG
- PPN: SCH-TM221ME16TG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$504.51/ EA
Description

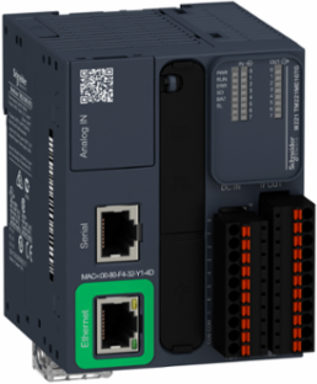

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete, 4 fast inputs, 8 transistor, 2 fast outputs with ethernet spring PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Specifications
Complementary
- Discrete Input Logic
- sink or source (positive/negative)
- Exct Time For Event Task
- 60 µs response time
- Electrical Connection
- terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable spring terminal block, 10 for inputs || removable spring terminal block, 11 for outputs
- Height
- 90 mm
- Discrete Input Voltage
- 24 V
- Inrush Current
- 35 A
- Communication Service
- Ethernet/IP adapter || Modbus TCP server || Modbus TCP client || Modbus TCP slave device || DHCP client
- Port Ethernet
- 10BASE-T/100BASE-TX 1 100 m copper cable
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
- Communication Port Protocol
- USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
- Marking
- CE
- Discrete I/O Number
- 16
- Regulation Loop
- adjustable PID regulator up to 14 simultaneous loops
- Power Supply Output Current
- 0.52-0.52 A 5 V expansion bus || 0.49-0.49 A 24 V expansion bus
- Application Structure
- 1 cyclic auxiliary task || 8 interrupt tasks || 1 configurable freewheeling/cyclic master task
- Maximum Voltage Drop
- <1 V
- Maximum Size Of Object Areas
- 512 %M memory bits || 255 %C counters || 8000 %MW memory words || 512 %KW constant words || 255 %TM timers
- Conversion Time
- 1 ms per channel + 1 controller cycle time analog input
- Function Available
- PLS || frequency generator || PWM
- Supply Voltage Limits
- 20.4-28.8 V
- Execution Time Per Instruction
- 0.2 µs Boolean
- Absolute Accuracy Error
- +/- 1 % of full scale analog input
- Local Signalling
- PWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || I/O state 1 LED per channel green) || SL 1 LED green) || ACT Ethernet network activity green) || Link (Link Status) Ethernet network link yellow)
- Discrete Input Current
- 7 mA discrete input || 5 mA fast input
- Analogue Input Resolution
- 10 bits
- Lsb Value
- 10 mV
- Depth
- 70 mm
- Maximum Leakage Current
- 0.1 mA transistor output
- Insulation
- between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
- Counting Input Number
- 4 fast input (HSC mode) 100 kHz 32 bits
Data Backed Up256 kB built-in flash memory backup of application and data
Input Impedance100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
Maximum Cable Distance Between Devicesshielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
Discrete Output Logicpositive logic (source)
Maximum Power Consumption In W22.9 W 24 V with max number of I/O expansion module) || 4 W 24 V without I/O expansion module)
Discrete Input Voltage TypeDC
Positioning FunctionsPTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)
Maximum Current Per Output Common4 A
Clock Drift<= 30 s/month 25-25 °C
Output Frequency100 kHz fast output (PWM/PLS mode) Q0...Q1 || 5 kHz output Q2...Q3 || 0.1 kHz output Q4...Q6
Protection Typeshort-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 1 A
Backup Time1 year 25 °C by interruption of power supply)
Reset Time1 s automatic reset
Maximum Number Of I/O Expansion Module7 local || 14 remote
Net Weight0.264 kg
Voltage State 0 Guaranteed<= 5 V input
Configurable Filtering Time0 ms input || 3 ms input || 12 ms input
Memory Capacity256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
Voltage State 1 Guaranteed>= 15 V input
Control Signal Typepulse/direction || A/B || single phase
Integrated Connection TypeUSB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
Mechanical Durability20000000 cycles transistor output
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Response Time35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
Execution Time For 1 Kinstruction0.3 ms event and periodic task || 0.7 ms other instruction
Realtime Clockwith
Width70 mm
Maximum Tungsten Load<12 W output and fast output
Data Storage Equipment2 GB SD card optional)
Supplyserial 1)serial link supply 5 V, <200 mA
Permitted Overload On Inputs+/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Environment
- Product Certifications
- LR || ABS || cULus || DNV-GL || EAC || RCM || CE || UKCA || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Pollution Degree
- <= 2
- Shock Resistance
- 147 m/s² 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Environmental Characteristic
- ordinary and hazardous location
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Storage Altitude0-3000 m
Ambient Air Temperature For Operation-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
Specifications
- Discrete Output Type
- transistor
- Discrete Output Number
- 8 transistor 2 fast output
- Discrete Output Current
- 0.5 A
- Analogue Input Number
- 2 0...10 V
- Discrete Input Number
- 8 , discrete input 4 fast input IEC 61131-2 Type 1
Range Of ProductModicon M221
Product Or Component Typelogic controller
Discrete Output Voltage24 V DC
[Us] Rated Supply Voltage24 V DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403012EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1403012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
