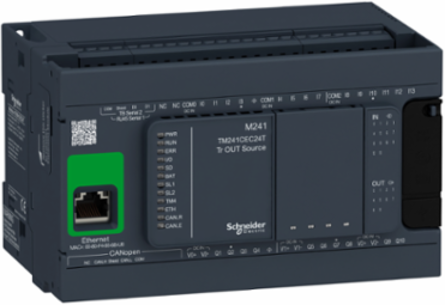

Schneider Electric TM241CEC24T Modicon M241 Logic Controller 24 I/O PNP Transistor 24V DC
- MPN: TM241CEC24T
- PPN: SCH-TM241CEC24T
CAD
$867.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This TM241 controller is part of the Modicon M241 Logic controller range. It has 24 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable terminal block for connecting the power supply, a button cell backup battery BR2032. This M241 logic controller has 5 embedded communication ports, two serial links (RS232/RS485 and RS485) and USB mini-B programming port. It also has an Ethernet port and a CANopen port. It enables the control of simple movements or of control loops. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth95 mm
Communications & Management Attributes
- Communication Service
- SNMP client/server, Modbus TCP slave device, Modbus TCP server, Modbus TCP client, IEC VAR ACCESS, FTP client/server, SQL client, DHCP client, Ethernet/IP adapter, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
Communication Port Protocolnon isolated serial link Modbus master/slave
Complementary Attributes
- Integrated Connection Type
- non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0, Ethernet RJ45, CANopen J1939 male SUB-D 9
- Maximum Current Per Output Common
- 2 A Q0...Q3 fast output, 2 A Q4...Q7 output, 1 A Q8...Q9 output
- Maximum Output Frequency
- 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
- Maximum Tungsten Load
- <2.4 W<2.4 W
Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m output, shielded cable <3 m fast output
Maximum Number Of Connections16 Ethernet/IP device, 8 Modbus server
Maximum Leakage Current5 µA output
Maximum Voltage Drop<1 V<1 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Application Structure
- 8 external event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 event tasks
- Clock Drift
- <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
- Control Signal Type
- A/B 100 kHz fast input (HSC mode), pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
- Electrical Connection
- removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task, 0.7 ms other instruction
- Local Signalling
- 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity, 1 LED (green) for CANopen run, 1 LED (green) for CANopen error
- Positioning Functions
- PTO 4 100 kHz), PTO 4 transistor output 1 kHz)
- Reset Time
- 10 ms automatic reset output, 12 s automatic reset fast output
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB, 10/100 Mbit/s Ethernet, 1000 kbit/s 20-20 m CANopen, 800 kbit/s 40-40 m CANopen, 500 kbit/s 100-100 m CANopen, 250 kbit/s 250-250 m CANopen, 125 kbit/s 500-500 m CANopen, 50 kbit/s 1000-1000 m CANopen, 20 kbit/s 2500-2500 m CANopen
- Voltage State 0 Guaranteed
- <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
- Certificate Agency
- RCM, cULus, CE, UKCA, DNV-GL, ABS, LR
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0852851833, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0010424397
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 267 kg CO2 eq., 267.26
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1307080EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Immunity To Microbreaks
- 10 ms
- Marking
- CE
- Port Ethernet
- 10BASE-T/100BASE-TX - 1 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M241
- Returnability
- Yes
- Software Version
- EIME v5.6.0.1
- Supply Voltage Limits
- 20.4-28.8 V
- Total Lifecycle Carbon Footprint
- 286 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; 220V; CN
- Height Nominal
- 90 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Number Of Server Device(S)
- 63 CANopen
- Package Weight(Lbs)
- 661.0 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 4179.5
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 8.6165
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 4149.8
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 224.33
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 224.33
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Canopen Feature ProfileDS 301 V4.02, DR 303-1
Configurable Filtering Time12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Protection Typeshort-circuit protection, short-circuit and overload protection with automatic reset, reverse polarity protection fast output
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
Response Time<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output50 µs turn-on, I0...I13 input, 50 µs turn-off, I0...I13 input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output
Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.52247761, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.4028504377
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint267.26
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
Tier1
Function OptionStandard
Market SegmentationIndustrial
Data Backed Up128 MB built-in flash memory backup of user programs
Inrush Current50 A
Memory Capacity64 MB system memory RAM
Power Consumption In W32.6-40.4 W with max number of I/O expansion module)
Product Or Component Typelogic controller
Realtime Clockwith
Shock Resistance15 gn 11 ms
Supplyserial 1)serial link supply 5 V, <200 mA
Sustainable PackagingYes
Web Servicesweb server
Pep CodeENVPEP1307080EN
Pep Verification Date2017-11-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh262.8
Energy Model - Installation [A5]Electricity mix; AC; 220V; CN
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN
Width Nominal150 mm
Discrete I/O Number24
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]27727
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]267.26
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]48.489
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4374.1
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4149.8
Water Pollution (M3) Operational Energy Use [B6]13293
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1307080EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2017-11-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint286.2716556707
Environmental DisclosureENVPEP1307080EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1307080EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M241
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 0.5 A transistor output Q0...Q9), 0.1 A fast output (PTO mode) Q0...Q3)
- Maximum Output Frequency
- 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
- Discrete Output Number
- 10 transistor 4 fast output
- Discrete Output Voltage
- 24 V DC transistor output
Maximum Current Per Output Common2 A Q0...Q3 fast output, 2 A Q4...Q7 output, 1 A Q8...Q9 output
Discrete Output Logicpositive logic (source)
Discrete Output Typetransistor
Output Voltage Limits30 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
Input Attributes
- Counting Input Number
- 4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz
- Input Impedance
- 4.7 kOhm input, 2.81 kOhm fast input
- Discrete Input Number
- 14 , discrete input 8 fast input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Discrete Input Current5 mA input, 10.7 mA fast input
Discrete Input Logicsink or source
Discrete Input Voltage24 V
Batteries & Runtime Attributes
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
