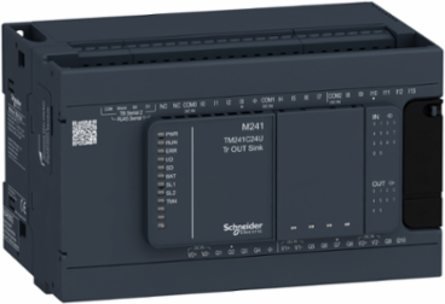

Schneider Electric TM241C24U Modicon M241 Logic Controller, 24 IO NPN, 0.5A Output, IP20, 0.53 kg
- MPN: TM241C24U
- PPN: SCH-TM241C24U
CAD
$725.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon M241 Logic Controller, 24 IO NPN, 0.5A Output, IP20, 0.53 kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia
Depth95 mm
Communications & Management Attributes
- Communication Port Protocol
- non isolated serial link Modbus master/slave
Complementary Attributes
- Integrated Connection Type
- non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0
- Maximum Current Per Output Common
- 2 A Q0...Q3 fast output, 2 A Q4...Q7 output, 1 A Q8...Q9 output
- Maximum Leakage Current
- 5 µA output
- Maximum Voltage Drop
- <1 V<1 V
Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m output, shielded cable <3 m fast output
Maximum Output Frequency20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
Maximum Tungsten Load<2.4 W<2.4 W
Important Information Attributes
- Application Structure
- 4 cyclic master tasks, 8 external event tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task
- Configurable Filtering Time
- 12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
- Data Storage Equipment
- <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
- Insulation
- between supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Protection Type
- short-circuit protection, short-circuit and overload protection with automatic reset, reverse polarity protection fast output
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
- Resistance To Electrostatic Discharge
- 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
- Response Time
- <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output50 µs turn-on, I0...I13 input, 50 µs turn-off, I0...I13 input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output
- Vibration Resistance
- 3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
- Voltage State 1 Guaranteed
- >= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
- Maximum Number Of I/O Expansion Module
- 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.633606043972008, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 45 kg CO2 eq., 44.56289596532732
- Local Data Status
- Publishable
- Return Indicator
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Inrush Current
- 50 A
- Memory Capacity
- 64 MB system memory RAM
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon M241
- Returnability
- No
- Software Version
- v6.2.2
- Supply Voltage Limits
- 20.4-28.8 V
- Total Lifecycle Carbon Footprint
- 912 kg CO2 eq.
- Pep Code
- ENVPEP1307080EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Recyclability Potential, In %
- 3
- Width Nominal
- 150 mm
- Discrete I/O Number
- 24
- Package Weight(Lbs)
- 799.0 g
- Warranty (In Months)
- 18
Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
Control Signal TypeA/B 100 kHz fast input (HSC mode), pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Execution Time For 1 Kinstruction0.3 ms event and periodic task, 0.7 ms other instruction
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state
Positioning FunctionsPTO 4 100 kHz), PTO 4 transistor output 1 kHz)
Reset Time10 ms automatic reset output, 12 s automatic reset fast output
Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB
Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
Certificate AgencyRCM, cULus, CE, UKCA, DNV-GL, ABS, LR
Carbon Footprint Of The Distribution Phase [A4]3.452735101936359, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.017935345071333396
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]862 kg CO2 eq., 862.2553836485951
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1307080EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Product Kit IdentifierN
Immunity To Microbreaks10 ms
MarkingCE
Power Consumption In W32.6-40.4 W with max number of I/O expansion module)
Product Or Component Typelogic controller
Realtime Clockwith
Shock Resistance15 gn 11 ms
Supplyserial 1)serial link supply 5 V, <200 mA
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh858.48
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1307080EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint911.9225561049021
Environmental DisclosureENVPEP1307080EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1307080EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M241
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 0.5 A transistor output Q0...Q9), 0.1 A fast output (PTO mode) Q0...Q3)
- Maximum Output Frequency
- 20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
- Discrete Output Number
- 10 transistor 4 fast output
- Discrete Output Voltage
- 24 V DC transistor output
Maximum Current Per Output Common2 A Q0...Q3 fast output, 2 A Q4...Q7 output, 1 A Q8...Q9 output
Discrete Output Logicnegative logic (sink)
Discrete Output Typetransistor
Output Voltage Limits30 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
Input Attributes
- Counting Input Number
- 4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz
- Input Impedance
- 4.7 kOhm input, 2.81 kOhm fast input
- Discrete Input Number
- 14 , discrete input 8 fast input IEC 61131-2 Type 1
- Discrete Input Voltage Type
- DC
Discrete Input Current5 mA input, 10.7 mA fast input
Discrete Input Logicsink or source
Discrete Input Voltage24 V
Batteries & Runtime Attributes
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
