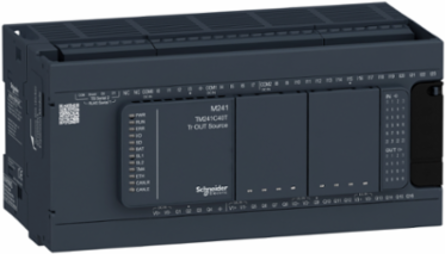

Modicon M241 Logic Controller 40 I/O, Transistor Output, 24V DC
Schneider Electric

Schneider Electric TM241C40T Modicon M241 Logic Controller 40 I/O, Transistor Output, 24V DC

  • MPN: TM241C40T
  • PPN: SCH-TM241C40T
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $876.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Modicon M241 Logic Controller 40 I/O, Transistor Output, 24V DC

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Italy, Singapore
    Depth95 mm

    Communications & Management Attributes

    Communication Port Protocol
    non isolated serial link Modbus master/slave

    Complementary Attributes

    Integrated Connection Type
    non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0
    Maximum Output Frequency
    20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
    Maximum Leakage Current
    5 µA output
    Maximum Voltage Drop
    <1 V<1 V
    Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m output, shielded cable <3 m fast output
    Maximum Current Per Output Common2 A
    Maximum Tungsten Load<2.4 W<2.4 W

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Application Structure
    8 event tasks, 8 external event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task
    Configurable Filtering Time
    12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
    Data Storage Equipment
    <= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    Electromagnetic Emission
    conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
    Insulation
    between supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC, between output groups 500 V AC
    Mounting Support
    top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Protection Type
    short-circuit protection, short-circuit and overload protection with automatic reset, reverse polarity protection fast output
    Resistance To Conducted Disturbances
    10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    Resistance To Electrostatic Discharge
    8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
    Response Time
    <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, 50 µs turn-off, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, 50 µs turn-on, I0...I15 input, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 34 µs turn-on, Q0...Q15 output, <= 250 µs turn-off, Q0...Q15 output
    Vibration Resistance
    3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    Voltage State 1 Guaranteed
    >= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    Maximum Number Of I/O Expansion Module
    7 (local I/O-Architecture), 14 (remote I/O-Architecture)
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    1.9399071772167593, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    53 kg CO2 eq., 52.918438958826194
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1307080EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Immunity To Microbreaks
    10 ms
    Marking
    CE
    Power Consumption In W
    32.6-40.4 W with max number of I/O expansion module)
    Product Or Component Type
    logic controller
    Realtime Clock
    with
    Shock Resistance
    15 gn 11 ms
    Supply
    serial 1)serial link supply 5 V, <200 mA
    Sustainable Packaging
    Yes
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    902.28
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal
    90 mm
    [Us] Rated Supply Voltage
    24 V DC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Clock Drift<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    Control Signal TypeA/B 100 kHz fast input (HSC mode), pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    Execution Time For 1 Kinstruction0.3 ms event and periodic task, 0.7 ms other instruction
    Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4), 1 LED per channel (green) for I/O state
    Positioning FunctionsPTO 4 100 kHz), PTO 4 transistor output 1 kHz)
    Reset Time10 ms automatic reset output, 12 s automatic reset fast output
    Resistance To Electromagnetic Fields10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    Transmission Rate1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s 3-3 m USB
    Voltage State 0 Guaranteed<= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    Certificate AgencyRCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    Carbon Footprint Of The Distribution Phase [A4]4.100122933549426, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.021298222272208407
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]906 kg CO2 eq., 906.2480052633192
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Data Backed Up128 MB built-in flash memory backup of user programs
    Inrush Current50 A
    Memory Capacity64 MB system memory RAM
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon M241
    ReturnabilityNo
    Software Versionv6.2.2
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint965 kg CO2 eq.
    Pep CodeENVPEP1307080EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential, In %3
    Width Nominal190 mm
    Discrete I/O Number40
    Package Weight(Lbs)758.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    Relative Humidity
    10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1307080EN
    Eu Rohs Directive
    Compliant By Exemption
    Operating Altitude
    0...6561.68 ft (0...2000 m)
    Packaging Without Single Use Plastic
    No
    Storage Altitude
    0-3000 m
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint965.2277725551838
    Environmental DisclosureENVPEP1307080EN
    Ip Degree Of ProtectionIP20 with protective cover in place
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1307080EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    logic controller
    Range Of ProductModicon M241

    ETIM

    ETIM 8
    EC000236
    ETIM 9EC000236

    Output Attributes

    Discrete Output Current
    0.1 A fast output (PTO mode) Q0...Q3), 0.5 A transistor output Q0...Q15)
    Discrete Output Logic
    positive logic (source)
    Discrete Output Type
    transistor
    Maximum Current Per Output Common
    2 A
    Maximum Output Frequency20 kHz fast output (PWM mode), 100 kHz fast output (PLS mode), 1 kHz output
    Discrete Output Number16 transistor 4 fast output
    Discrete Output Voltage24 V DC transistor output
    Output Voltage Limits30 V DC

    Surge Protection And Filtering Attributes

    Configurable Filtering Time
    12 ms input1 s fast input, 12 ms fast input, 0 ms input, 1 ms input, 4 ms input
    Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5

    Input Attributes

    Counting Input Number
    4 fast input (HSC mode) 200 kHz, 16 standard input 1 kHz
    Input Impedance
    4.7 kOhm input, 2.81 kOhm fast input
    Discrete Input Number
    24 , discrete input 8 fast input IEC 61131-2 Type 1
    Discrete Input Voltage Type
    DC
    Discrete Input Current10.7 mA fast input, 7 mA input
    Discrete Input Logicsink or source
    Discrete Input Voltage24 V

    Batteries & Runtime Attributes

    Battery Type
    BR2032 lithium non-rechargeable 4 year(s)

    Accessories
