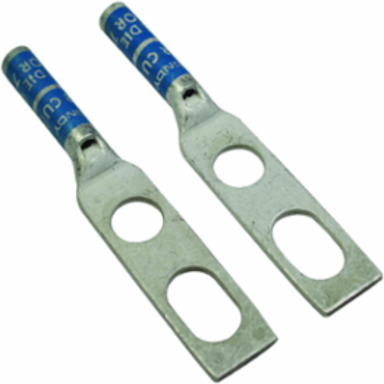

Burndy YAZ2C2TC38SL Long Length Barrel Compression Terminal, 2 AWG, 3/8 Inch Stud, Tin Plated, 1-5/16 Inch Strip Length
- MPN: YAZ2C2TC38SL
- UPC: 781810499450
- PPN: BUR-10112966
CAD
$23.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Compression Terminal,Slotted, #2 AWG (Code), 3/8 IN Stud, 1.00 IN Spacing, Brown, 10 Index, 1-5/16 IN Strip Length
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.25 in
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 87 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.60 in
- Dimension - Stud Size inch
- 3/8
Dimension - Bolt Hole Size inch0.4 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch3.41 in
Dimension - Outside Diameter inch0.42 in
Dimension - Strip Length inch1-5/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Material
- Copper
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810499450
Connector TypeTerminal
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818104994500
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
