Copper Compression Terminal, Long Length Barrel, 2 Hole, 1-3/16 Inch Strip Length

Documentation & Downloads

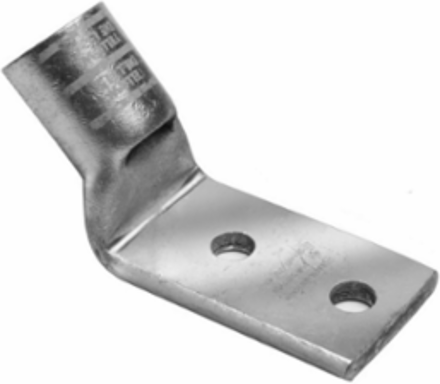

Burndy YAZ6C2TC14E245 Copper Compression Terminal, Long Length Barrel, 2 Hole, 1-3/16 Inch Strip Length

MPN: YAZ6C2TC14E245
UPC: 781810228869
PPN: BUR-25019257

CAD

$14.66

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

COPPER COMPRESSION TERMINAL, TIN - ELECTRO PLATED,2 HOLE, DIEINDEX 7, 45 DEGREE

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction: 1-1/8 in

Dimension - Bolt Hole Size inch: 0.27 in

Dimension - Hole Size inch: 0.27 in

Dimension - L Length Overall mm: 66 mm

Dimension - N inch: 0.31 in

Dimension - Pad Width inch: 0.45 in

Dimension - Z inch: 0.34 in

Dimension - B Length inch1.12 in

Dimension - Height inch1.19 in

Dimension - Hole Size mm7 mm

Dimension - Length Overall inch2.58 in

Dimension - Outside Diameter inch0.29 in

Dimension - Strip Length inch1-3/16

Physical Attribute - Tongue Angle45 Degree

Certifications and Compliance

Certification - CSA Approved: Yes

Certification - UL Recognized: No

Standards - RoHS Compliance Status: CM

Certification - ETLNo

Certification - cULusNo

UL ListedYes

Conductor Related

Conductor - Copper Str Navy Size: 30 (19) Navy

Conductor - Material: Copper

Conductor - Copper Str Size6 AWG

General

Color Code: Blue

Die Index: 7;374

Feature - Barrel Type: Long

Physical Attribute - Number of Holes: 2

Plated: Y

Trade Name: HYLUG™

UPC: 781810228869

Connector TypeTerminal

Feature - Barrel StyleSkived

MaterialCopper

Physical Attribute - Tongue TypeStandard

Plating TypeTin - Electro Plated

TypeLong Barrel, Skive, Tin Plated

UPC 12 Digit7818102288699

Electrical Ratings

Rating - KVA: 35 kV

Voltage - Maximum: 35000

Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity: 15
