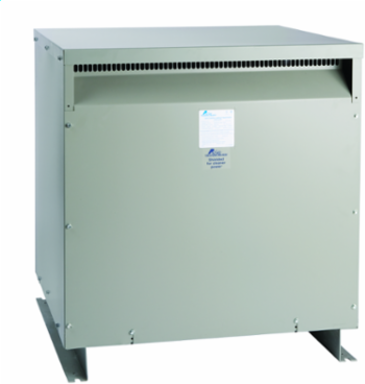

Acme Electric T2A527191 Low Voltage Distribution Transformer 500/400 kVA, 600/480V, NEMA 2
- MPN: T2A527191
- UPC: 047503420195
- PPN: HBL-T2A527191
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 600/480 - 480/380V, 500/400kVA, Autotransformer
Features
- Quiet operation with sound levels below NEMA standards
- Optional weather shield - WSA3
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 500/400
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 480/380 V
- Frequency Rating
- 50/60 Hz
- Length
- 26.88 in
- Primary Voltage
- 600/480 V
- UL Insulation Class
- 220°C
- Weight
- 790 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Construction
- Ventilated
- BOX SIZE
- 49.000x45.000x43.000 (in)
- Pallet Height
- 49.000 in
- Pallet Weight
- 790.000 lb.
- NAICS Code
- 335311
BNFC Taps2
Dimensions26.88 in x 31.9 in x 35.47 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height35.47 in
MountingFloor
Width31.9 in
UL StandardUL 1561
Material typeZFIN
Nema RatingNEMA 2
Class CodeD10
Harmonization Code8504330040
Stock IndicatorN - Non-stock
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503420195
Pallet Length45.000 in
Pallet Width43.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
