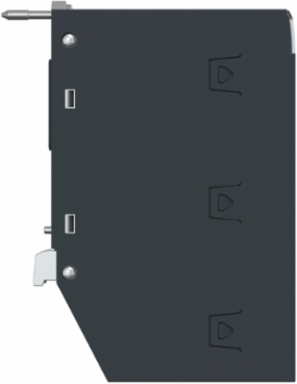

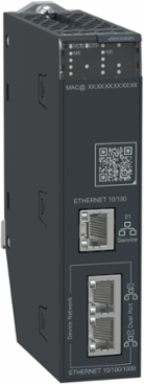

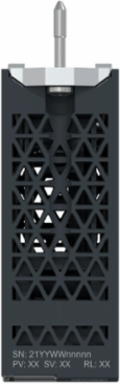

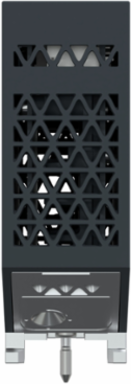

Schneider Electric BMENOC0302H Communication module, Modicon M580, performance, Ethernet IP/Modbus TCP, for severe environments

MPN: BMENOC0302H
PPN: SCH-BMENOC0302H
UNSPSC: 32151705

$1516.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Communication module, Modicon M580, performance, Ethernet IP/Modbus TCP, for severe environments

Features

Embedded EtherNet/IP Modbus TCP Server&Client
Robustness of X80 platform and support Harsh environment
Enhanced webpage (Diagnostic, Rack/Alarm/Program Viewer)
Enhanced cybersecurity (HTTPS, IPSec Initiator/Responder with IKEv2, SNMPv3, NTPv4)
Support for Hot Standby configurations ( IP auto-swap, Fixed IP)
Wide range of operating temperature from -25°C to 70°C
High performance data exchange on Ethernet backplane communications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	542 g

Communications & Management Attributes

Communication Service	bandwidth management, FDR server, SNMP network administrator, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, port mirroring, embedded multiport switch

Complementary Attributes

Integrated Connection Type	2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair1 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair

Maximum Number Of Modules Per Rack	6

Important Information Attributes

Cybersecurity	secure communication (HTTPS), certificate based authentication, system hardening, role-based access control, Syslog protocol support, IPSec (initiator and responder role), Achilles level 2 tested, SNMP logging
Function Available	hot swappable module, Advanced diagnostic information (DDT, web pages, Modbus TCP and EIP Objects), SCADA connection through Modbus TCP
Certificate Agency	CE, cULus, RCM, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.9 kg CO2 eq., 0.8722812499999999
Carbon Footprint Of The Manufacturing Phase A1 To A3	37 kg CO2 eq., 36.91528125
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2402021EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2430
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Backplane Slot Location	Ethernet + X-bus Slot
Device Application	process and control communication module
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	Yes
Transmission Support Medium	Ethernet backplane
Web Server	advanced
Data Source	extrapolated product

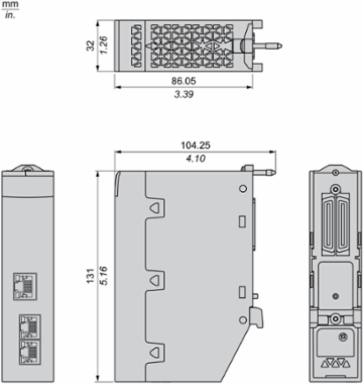

Length Total	86.05 mm
Nbr. Of Units In Pkg.	1
Functional Unit Description	The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional Unit Unit	Unit

Environmental Characteristic	gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Local Signalling	1 LED (green) for processor running (RUN)1 LED (red) for processor or system fault (ERR)1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status)
Carbon Footprint Of The Distribution Phase A4	0.07087496875, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.215762578125, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	24 kg CO2 eq., 23.54560000000001
Local Publishable Date	2026-04-18
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Current Consumption	155 mA 24 V DC
Exchange Mode	half duplex and full duplex
Mounting Location	main rack
Product Or Component Type	communication module
Range Of Product	Modicon M580
Shock Resistance	30 gn
Supply	internal power supply via rack
Total Lifecycle Carbon Footprint	62 kg CO2 eq.
Vibration Resistance	3 gn
Database Version	2022-01
Height Nominal	131 mm
Width Nominal	32 mm
Packaging Weight In G	56
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
Take Back	No
China Rohs Regulation	X
Carbon Footprint	61.619800046875014
Environmental Disclosure	ENVPEP2402021EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2402021EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Product Compatibility	Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2402021EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000 m...5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
